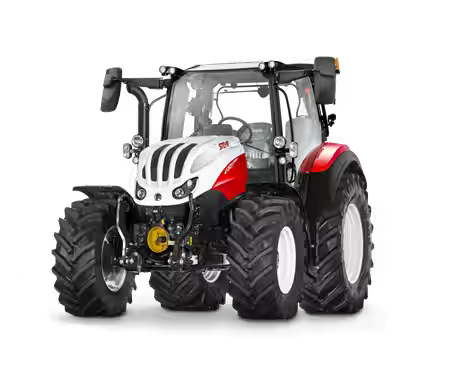

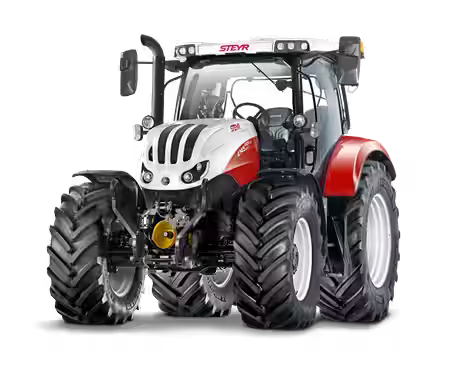

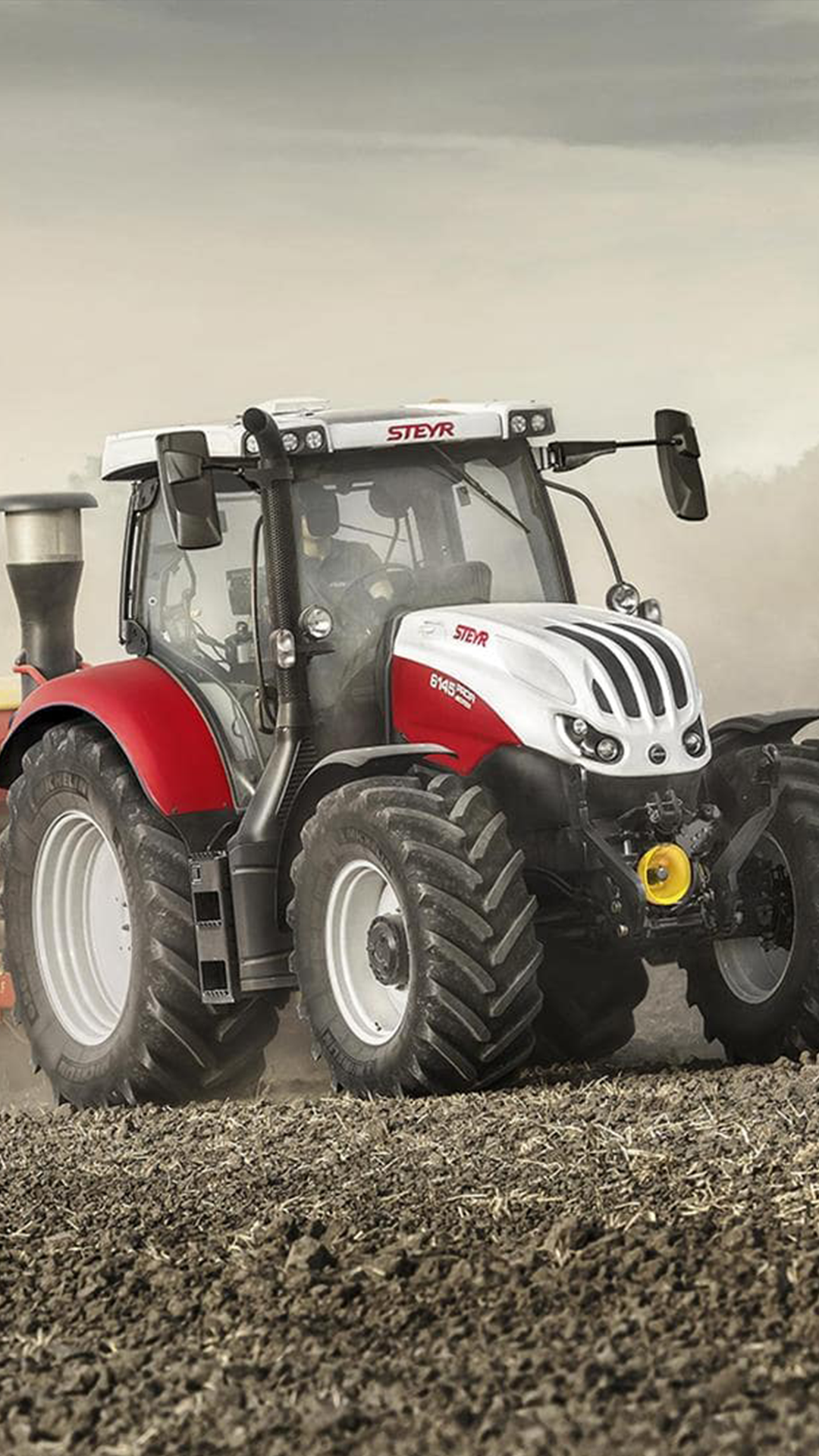

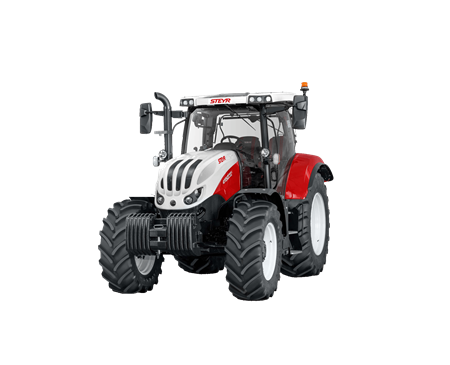

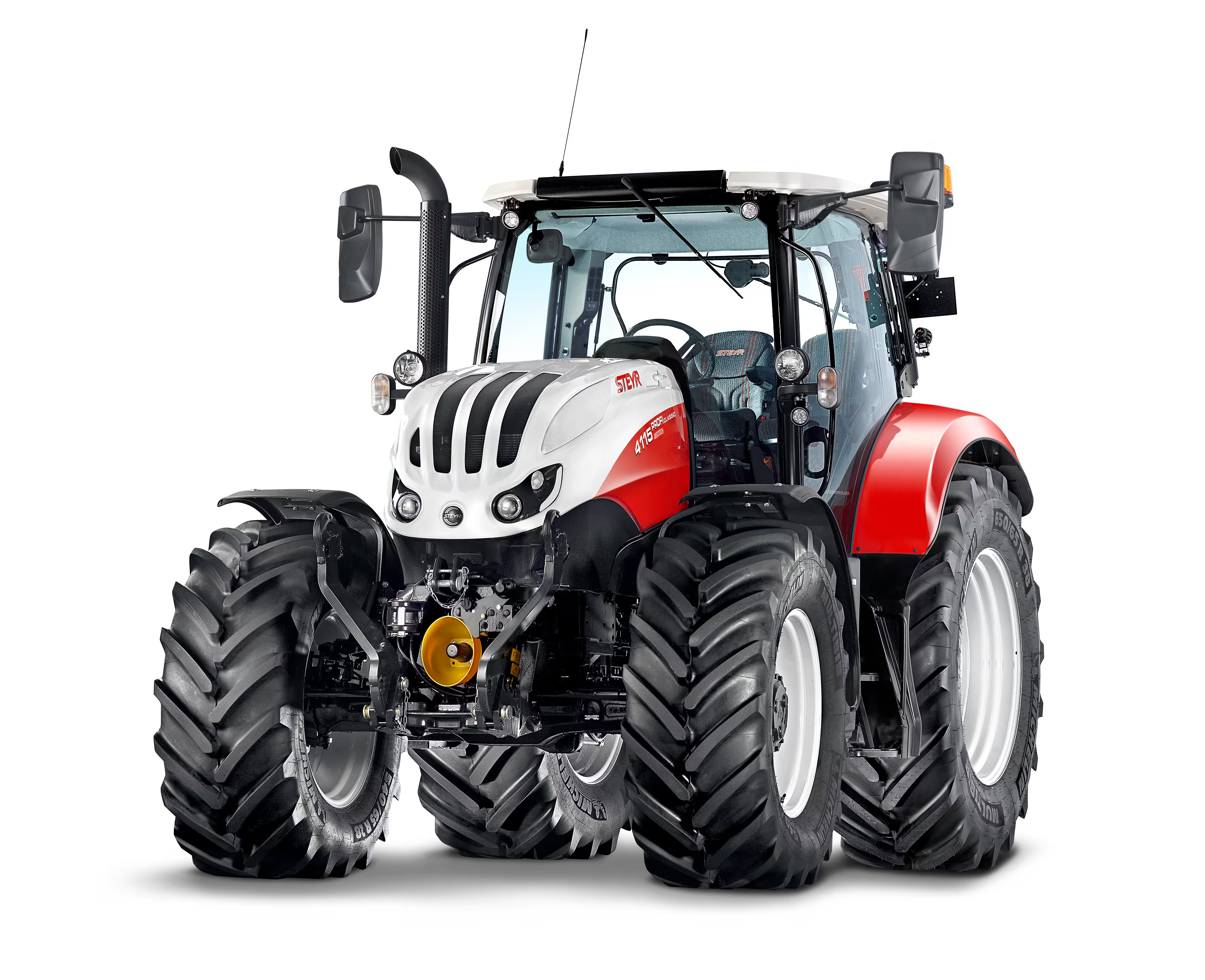

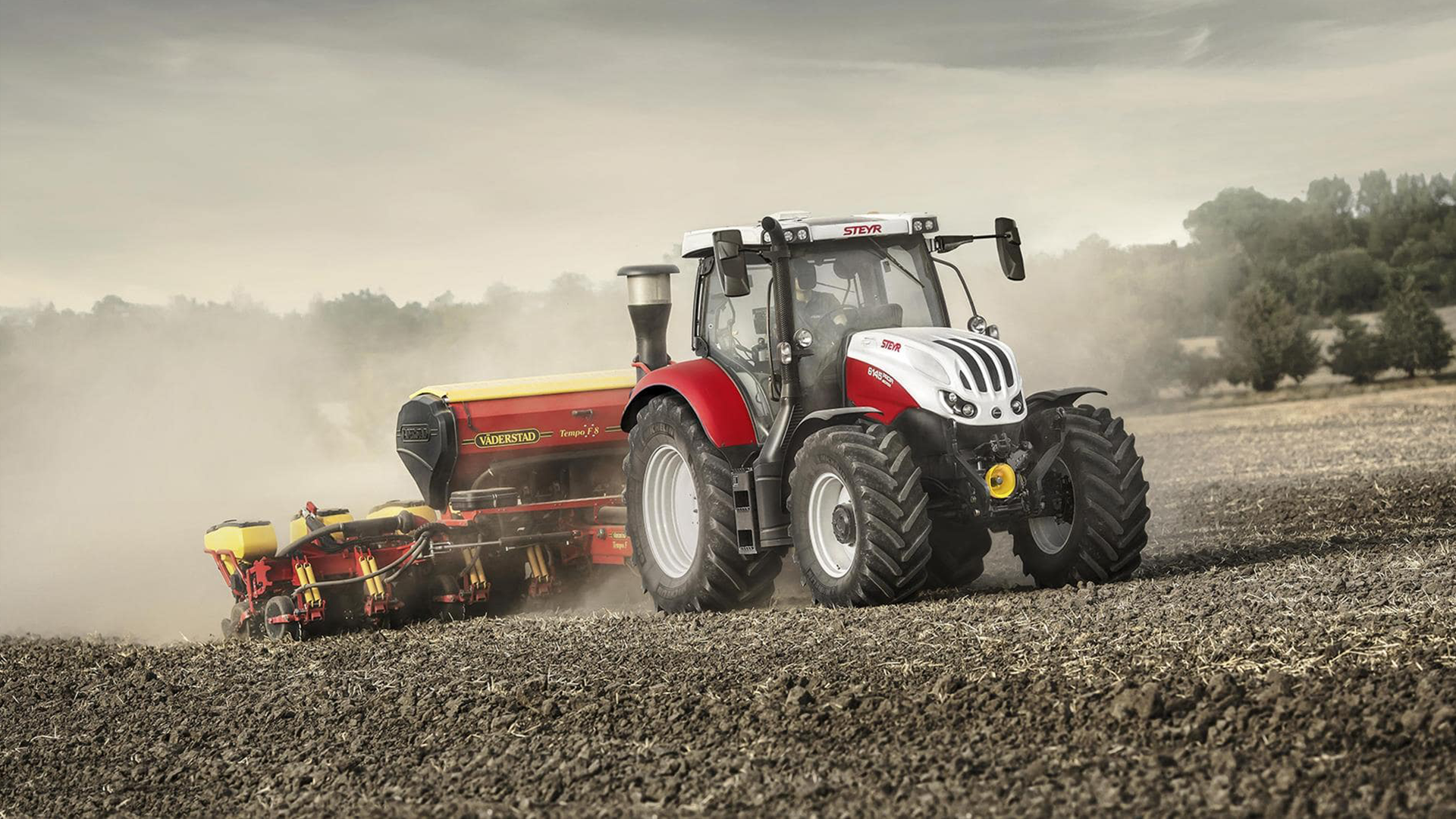

Profi

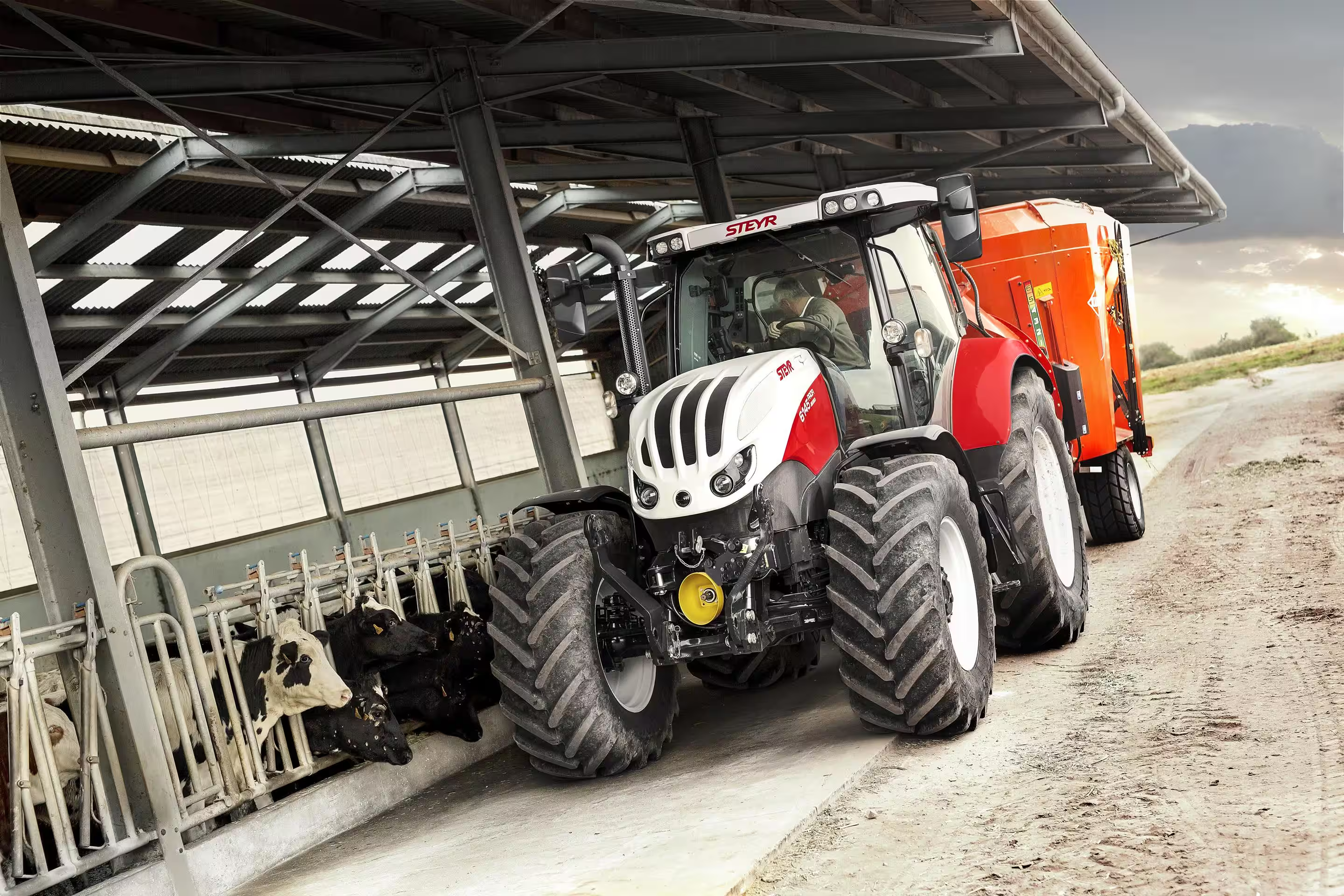

Efficiency and versatility with a fresh design look: Our new Profi series is impressive in field work and in the farmyard, and is equally capable of tackling industrial and forestry work. With the Profi in the horsepower category of 116-150 hp, a wide selection is available for you, with either 4 or 6-cylinder engines. Optimum variety combined here in a single series. The Profi models are equipped with more electronics, greater comfort and with the tried and tested Multicontroller armrest.

Profi

PROFI DELIVERS ON EVERYTHING

...
Low noise emission level of 69 dB(A) to take the stress out of working with the Profi and Profi CVT.
...
Up to 16 LED worklights for perfect 360° illumination.
...
Ergonomic operation using the Multicontroller armrest.
...
Cab and front axle suspension for more comfort.
...
PowerPlus for up to 34 hp more power.
...
S-ControlTM 8: 8-speed Powershift transmission with 24 x 24 gears.
...
Eco mode: 40 km/h achieved at a fuel-efficient 1,750 rpm.
...
Headland management Easy-Tronic II for automating time and distance dependent work operations.
...
3-stage PTO speeds with Power mode or the fuel-efficient speeds of the Eco mode.
...
Maximum lifting power of up to 7,864 kg at the rear and 3,100 kg at the front.
...

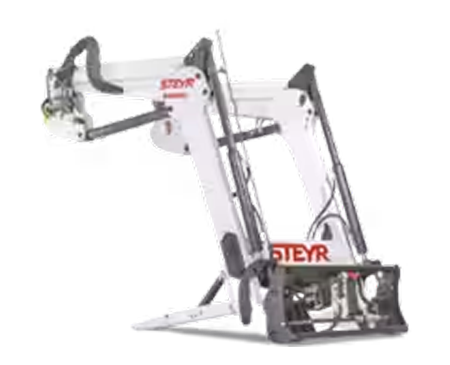

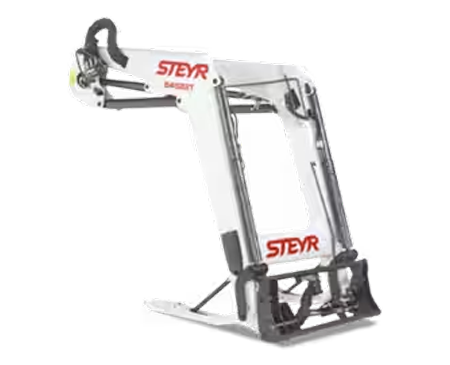

STEYR front loader attachment frame is available ex-factory.
...
Combinations of tyres and wheels to suit every type of application.
...
Profi supports the latest ISOBUS technology.
...
S-Tech precision agricultural technology – always one step ahead with S-Guide and S-Turn.
LOOKS LIKE GREAT VALUE FOR MONEY

 The new Profi models now feature a 8-speed Powershift transmission with 24 x 24 gears, and are equipped with a Multicontroller armrest.

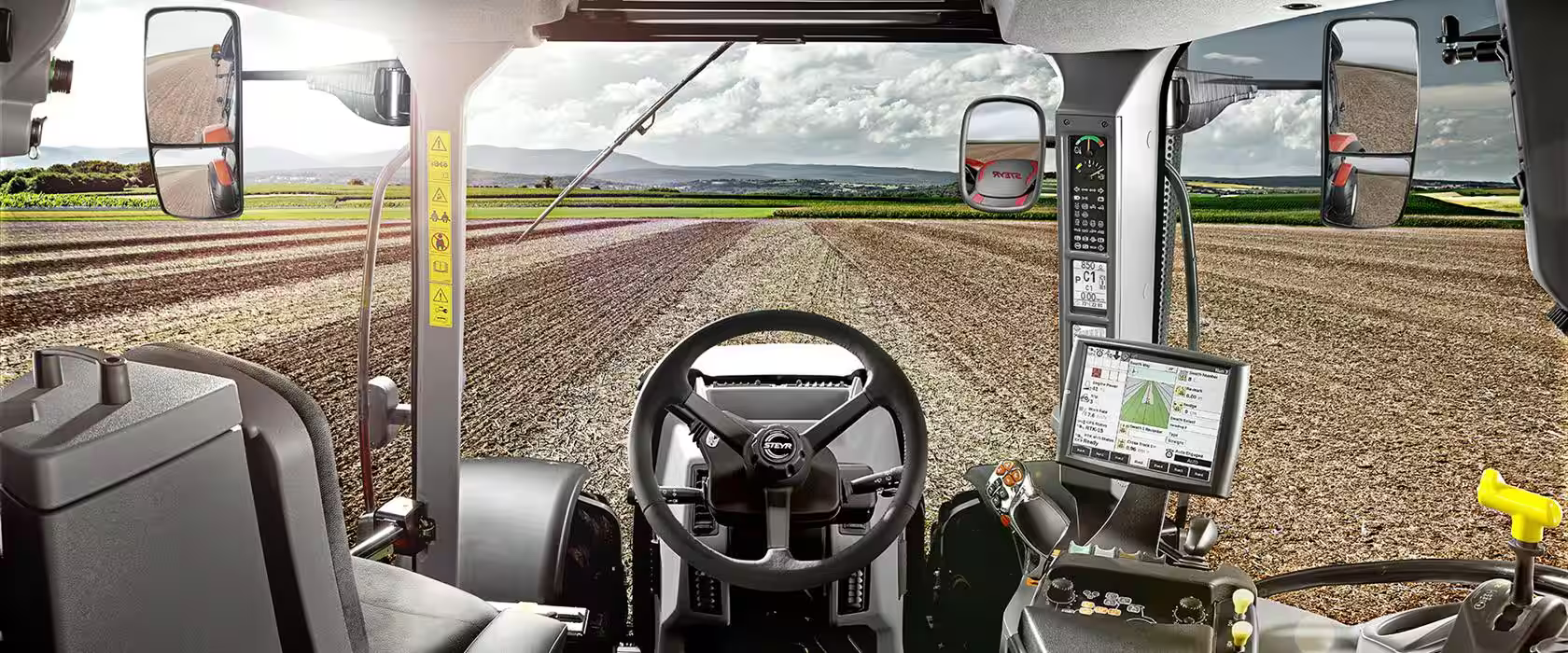

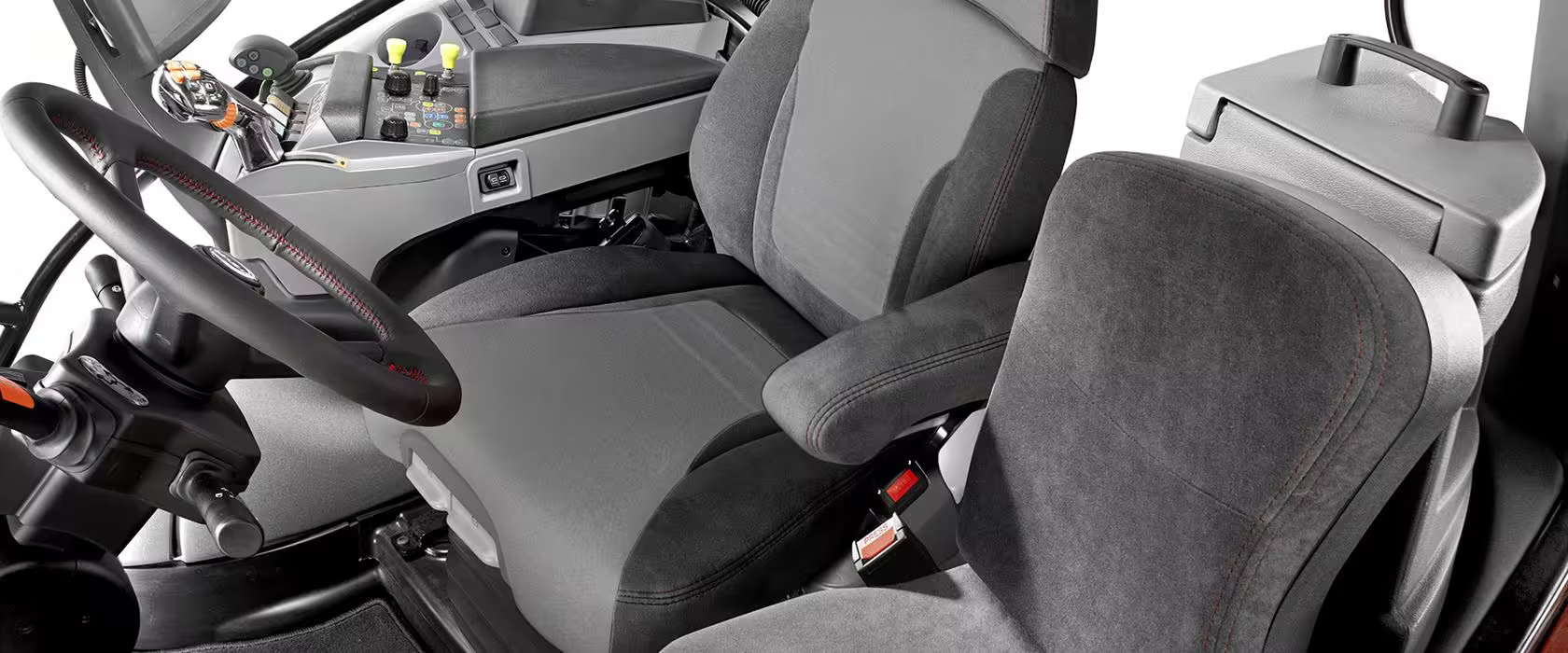

With the Comfort cab, the Profi series turns long operations into a pleasure. Regardless of the type of terrain and the kind of ground the Profi is driving across, the cab always provides optimum ride comfort and safety. It is accessible from both sides, and can be supplied with the low or high roof. It is also available with cab suspension.

The 4-pillar panorama cab with its large windows, its high-visibility roof window and a one-piece front windscreen gives you perfect and unrestricted all-round visibility. The LED work light package assures superlative visibility even after night has fallen.

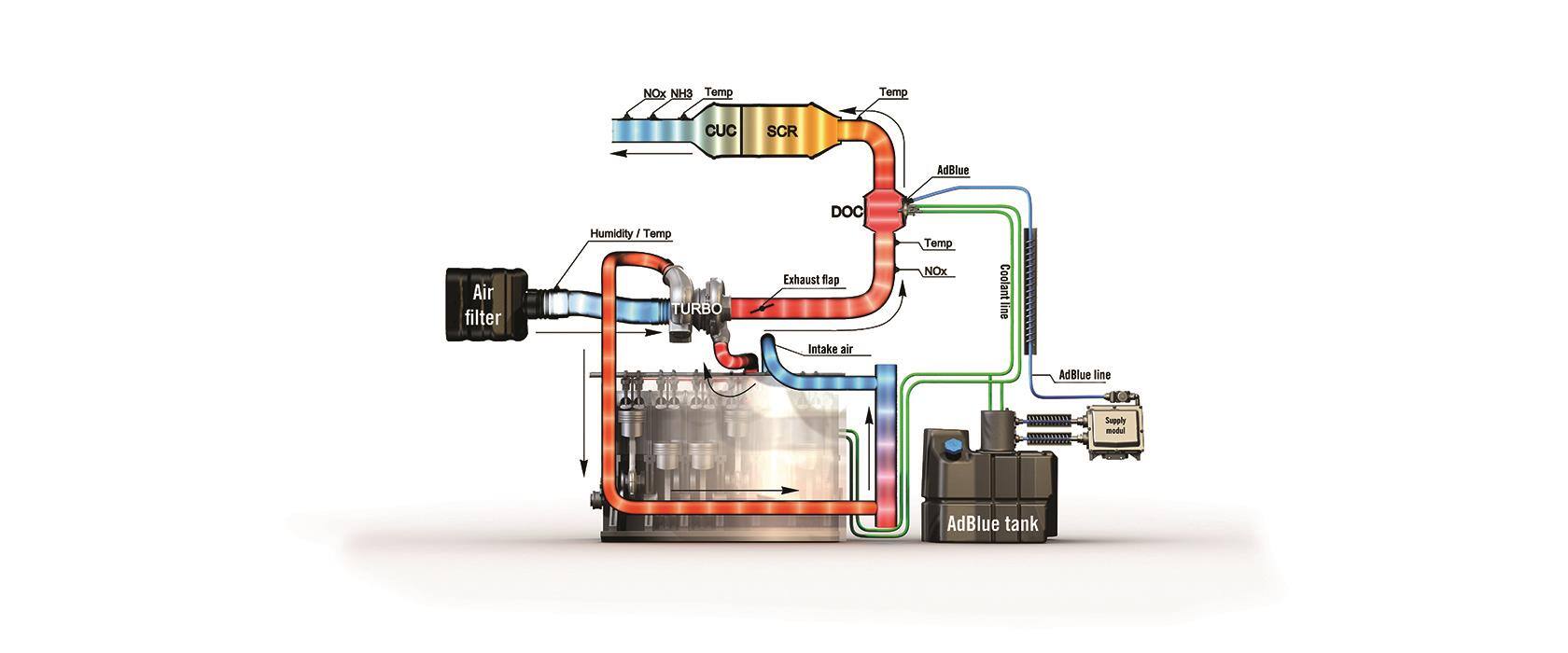

The electronically controlled diesel engines effortlessly take care of all power work even at low engine speeds. The Profi range today covers a nominal power range of 116 to 150 hp. The main working range of the engine, between 1,500 and 1,900 rpm, is able, thanks to PowerPlus, to deliver an extra 34 hp of power at all times.

The S-ControlTM 8 transmission is used in Profi models: an 8-speed powershift transmission with a total of 24 gears both forward and reverse. The transmission has a number of automatic functions that make the tractor more efficient and the driver more relaxed.

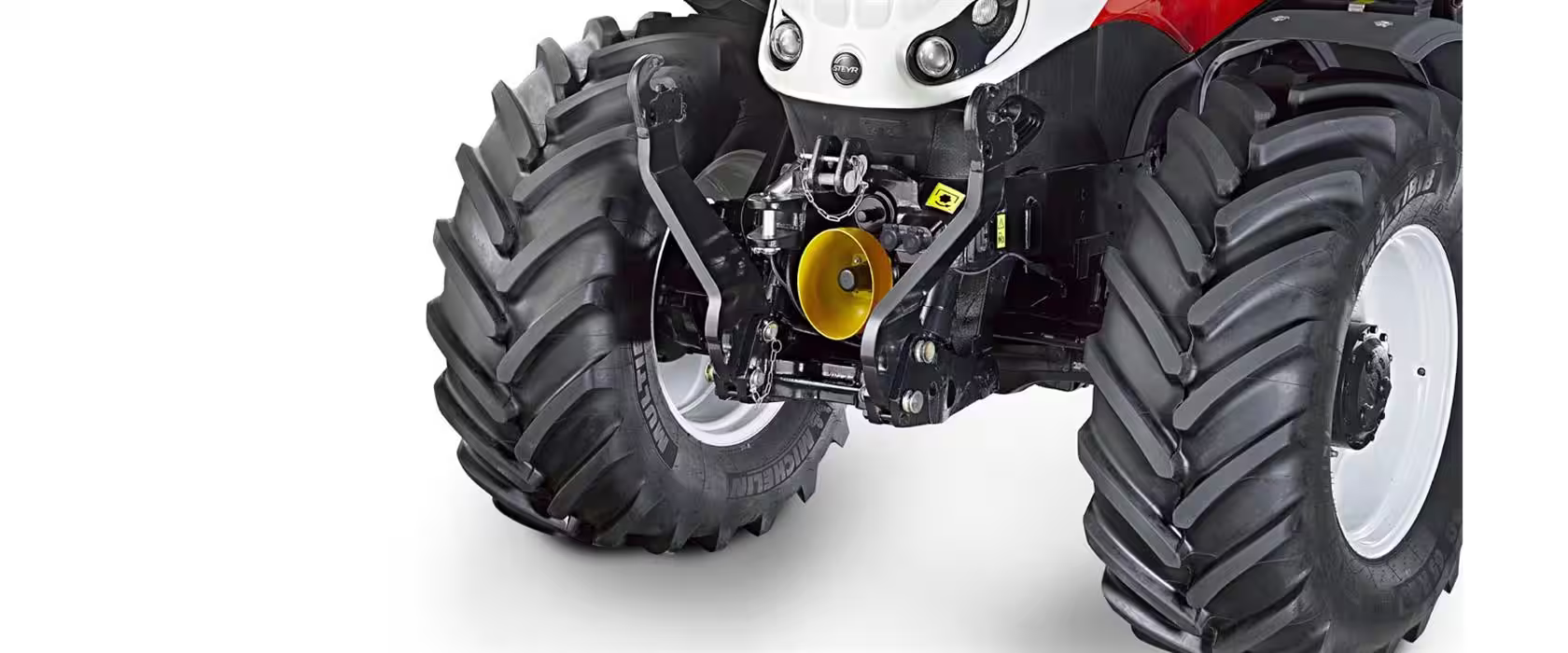

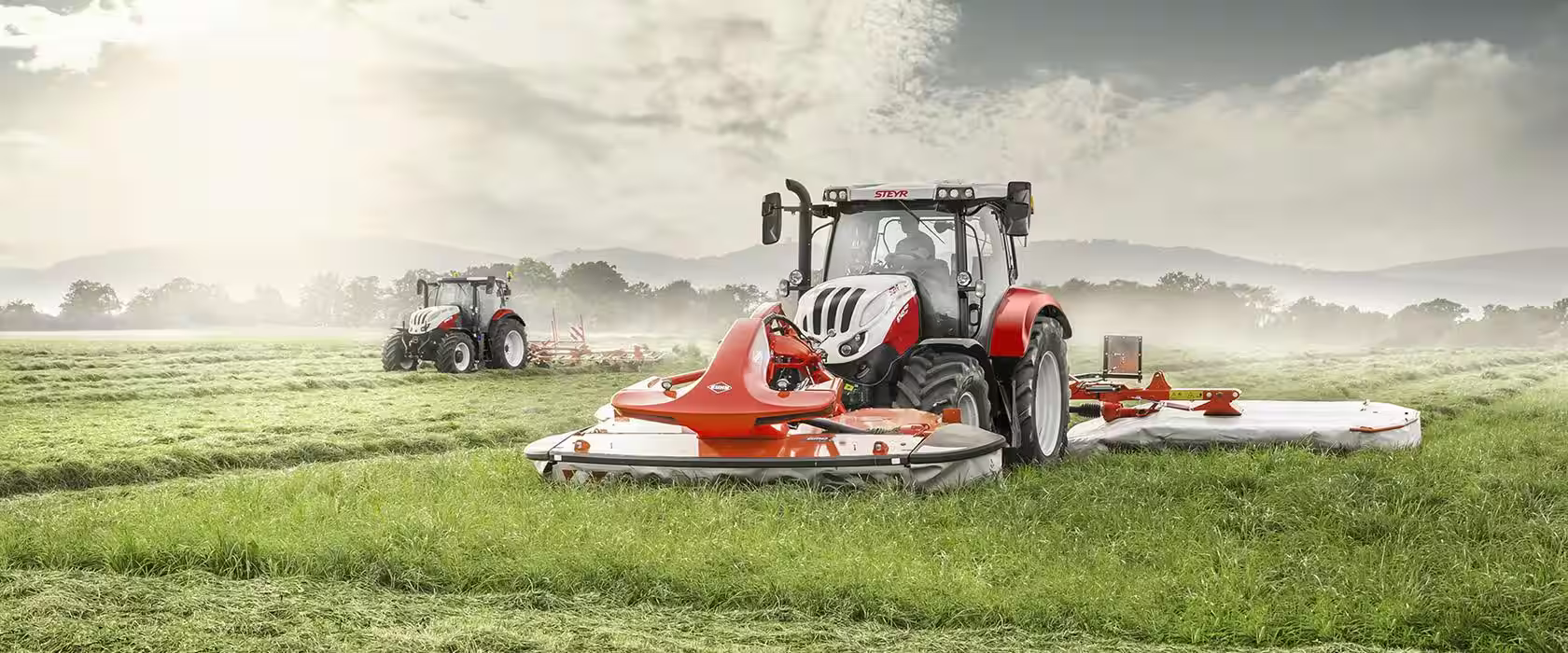

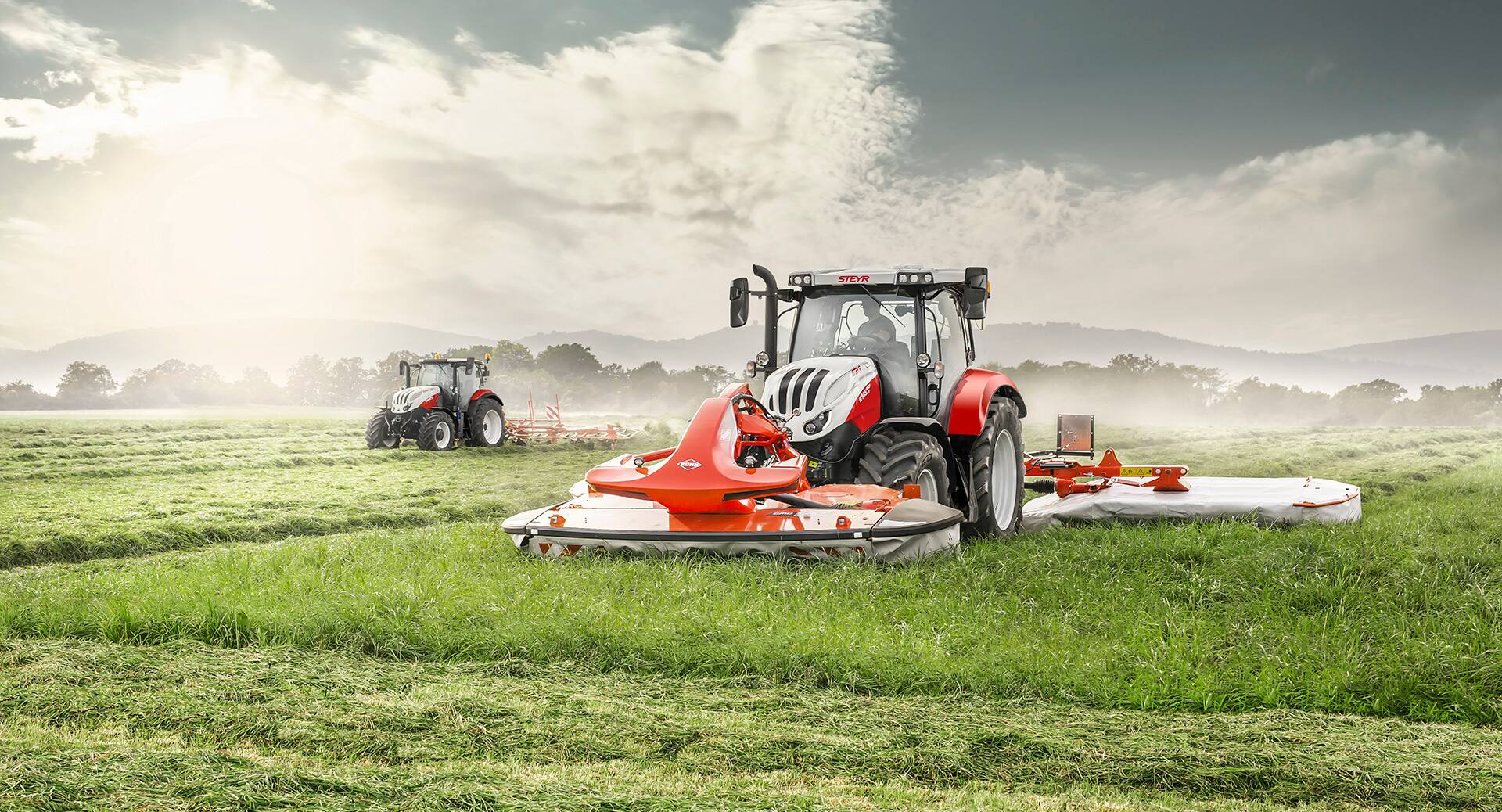

The PTO on the Profi series has a choice of three different operating speeds. To make full use of the power of Profi models at front and back simultaneously, for example when operating a combination of front and rear-mounted mowing equipment, a front hitch with front-mounted PTO shaft is available as an option to boost your productivity.

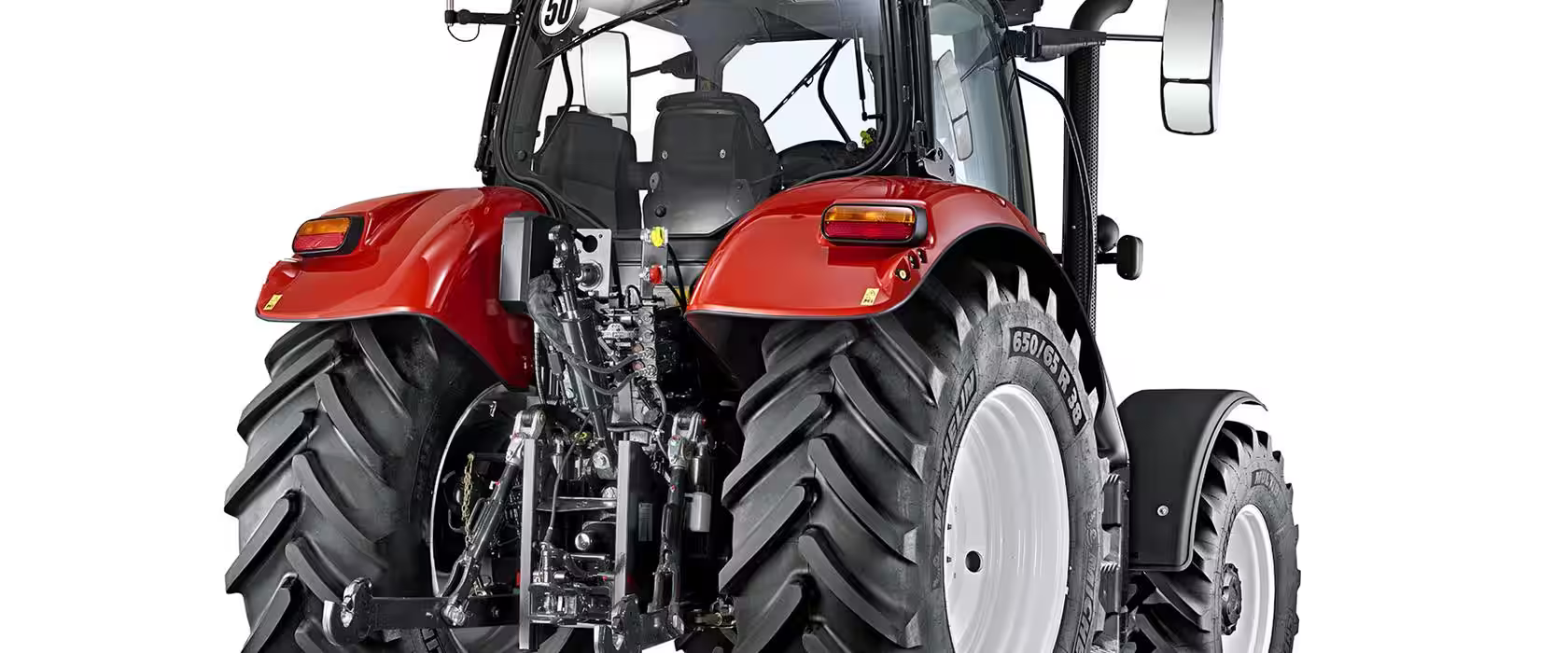

The hitch and the auxiliary control units on our STEYR Profi models are powered by a OCLS hydraulic system (open oil circuit) at a displacement rate of 86 l/min or a CCLS hydraulic system (closed oil circuit) at a displacement rate of 150 l/min. This system assures full performance at the right time and at the right place.

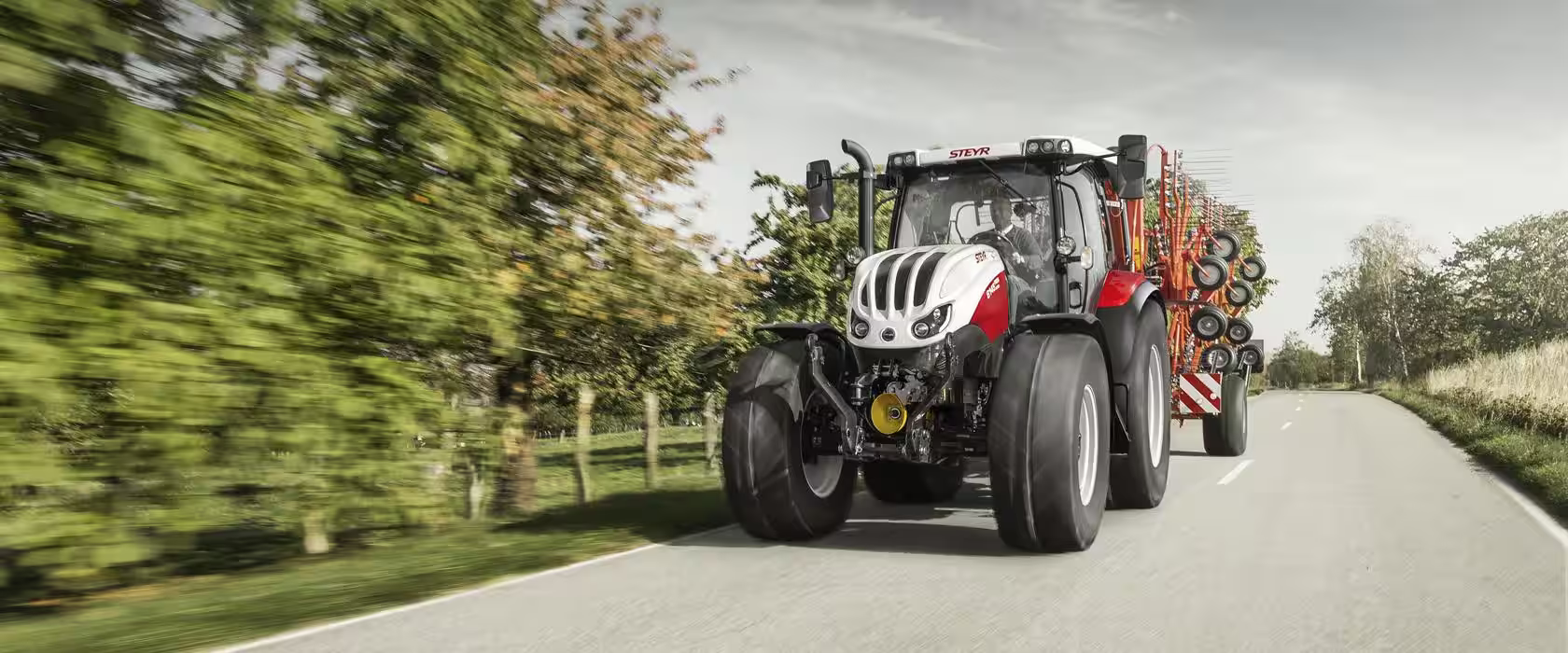

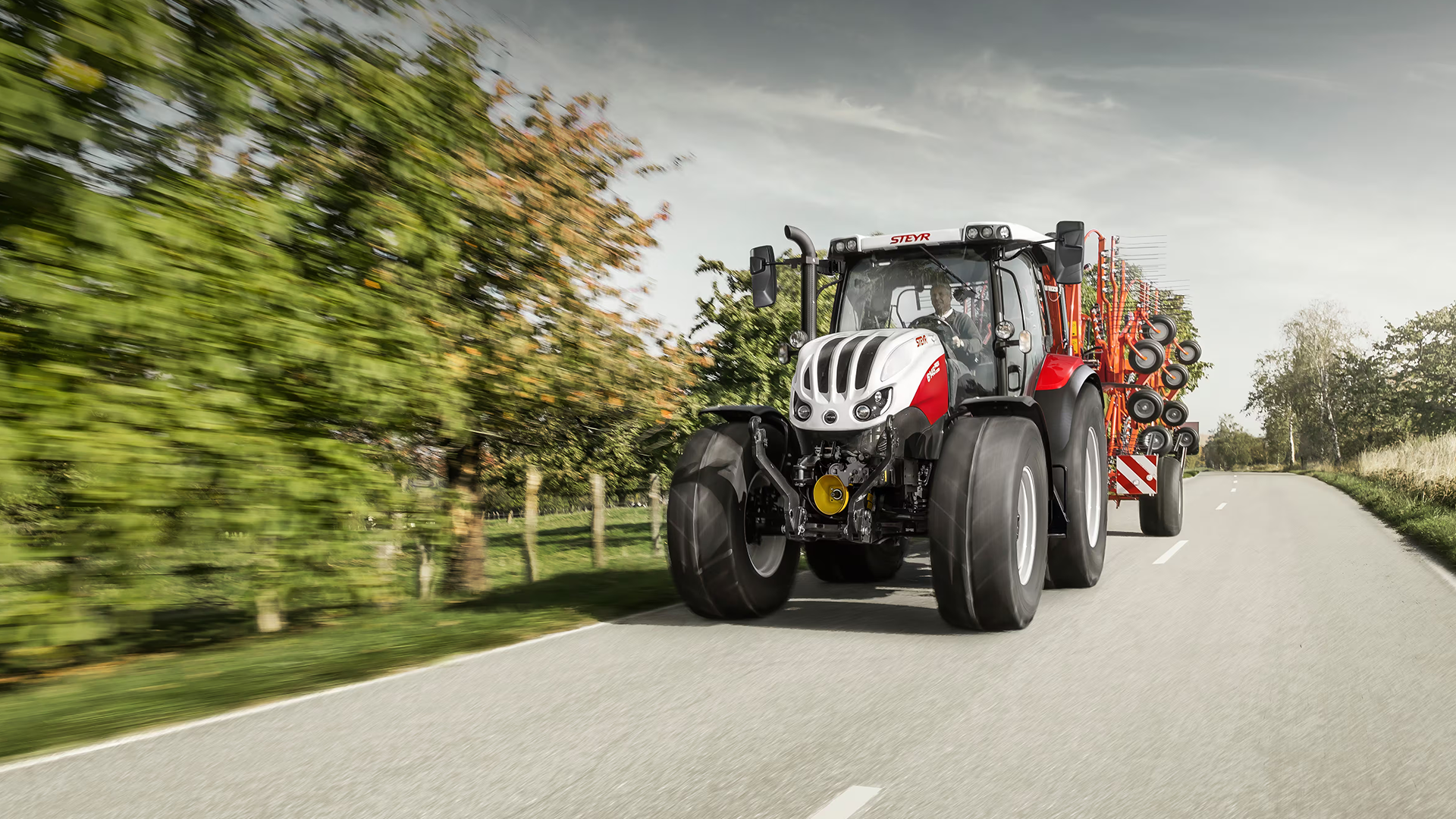

The power of the Profi models can be delivered to the ground and used comfortably with great precision. This is because, as well as active traction management, the tractors also have many other features that optimise the steering and braking characteristics in every situation. With a Profi you can get everything done well and reliably. That is as true of on-road operations as it is of pasture land, fieldwork, and forestry operations, and of work on steep terrain or in confined farmyard environments.

WORKING MORE EFFICIENTLY

STRAIGHT LINES SAVE MONEY
SECTION CONTROL
S-TECH 700 PLUS
S-FLEET
STRAIGHT LINES SAVE MONEY

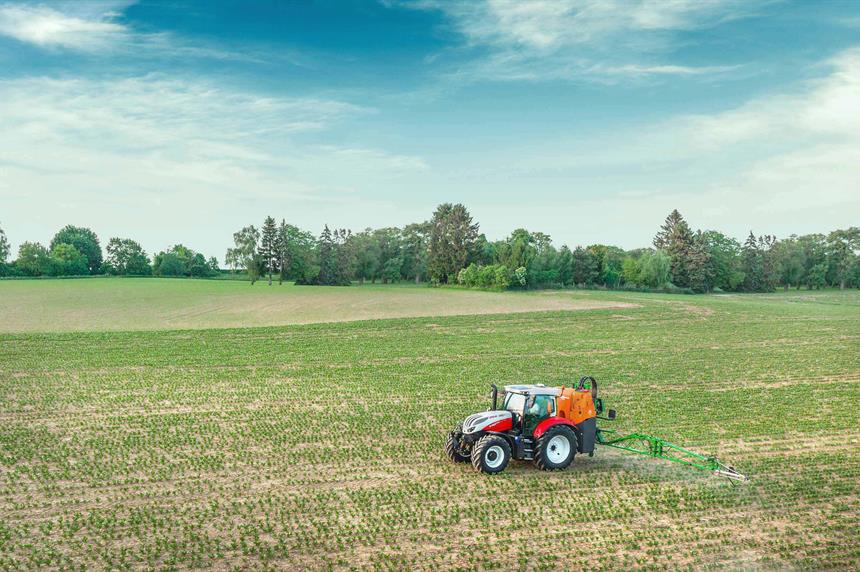

The automatic DGPS-based S-guide steering system assures parallel tramline guidance for work in straight lanes, on curves and in the headlands. The system guarantees 100 % network coverage and uses the revolutionary X-FILL technology to bridge signal losses lasting up to 20 minutes. With a precision of up to as little as 1.5 cm through an owned comprehensive RTK⁺ network, there is no risk of overlapping even with tough ground or weather conditions.
STRAIGHT LINES SAVE MONEY

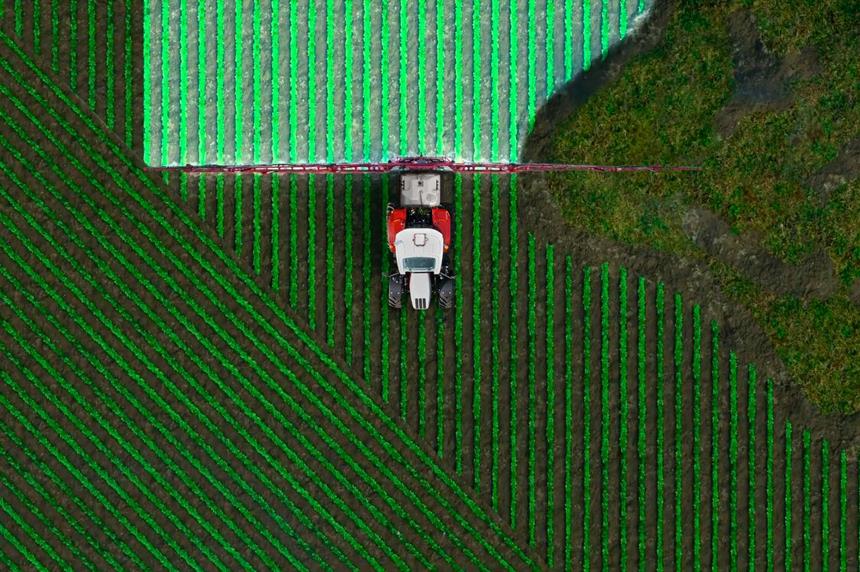

SECTION CONTROL
The technology will automatically switch sections on/off in areas that have already been covered to avoid overlap on passes in field, at headland turns and irregular fields shapes. This lowers your operation’s input costs by eliminating double applications of seed and fertiliser.
SECTION CONTROL
S-TECH 700 PLUS

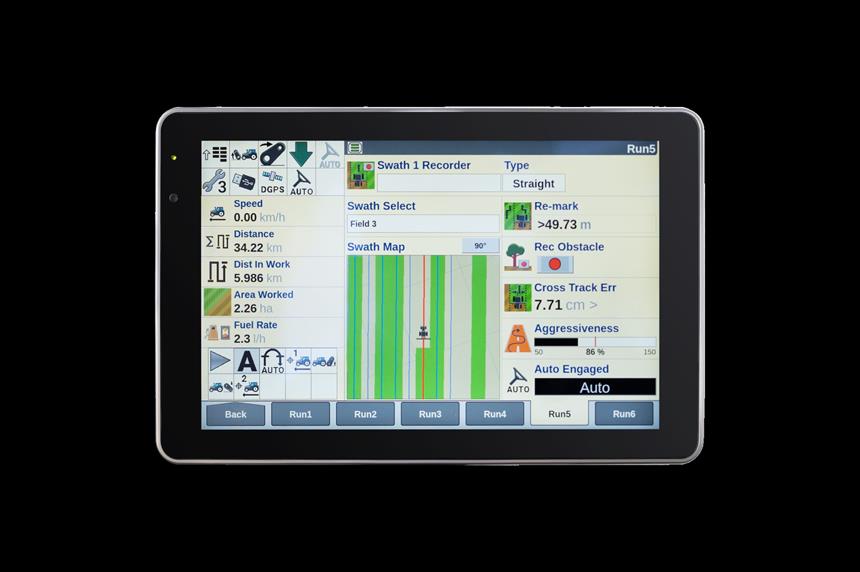

The S-TECH 700 Plus touchscreen monitor offers an effective control and precision guidance system for arable farming. ISOBUS II-compatible attachments can easily be connected and controlled without additional wiring simply using the monitor.
S-TECH 700 PLUS
S-FLEET
S-FLEET lets you remotely monitor and manage your farm, fleet and data, allowing you to optimise your performance, productivity and flexibility. Efficiently visualise your equipment with little to no idle time. With all the information at your fingertips, you can successfully manage your operations anytime, anywhere!
S-FLEET
STEYR Profi Brochure
4125 Profi 4135 Profi 4145 Profi 6150 Profi
Number of cylinders 4 4 4 6
Engine
Type Common Rail Diesel engine with 16 valves, turbocharged and intercooled Common Rail Diesel engine with 16 valves, turbocharged and intercooled Common Rail Diesel engine with 16 valves, turbocharged and intercooled Common Rail Diesel engine with 24 valves, turbocharged and intercooled
Emission Level Stage V Stage V Stage V Stage V Stage V Stage V Stage V Stage V Stage V Stage V Stage V Stage V
Capacity (cm³) 4485 4485 4485 6728
Engine Performance
Maximum engine power with Power Management (hp (kW)) 155 (114) 169 (124) 175 (129) 175 (129)
Maximum engine power (hp (kW)) 135 (99) 145 (107) 155 (114) 158 (116)
@ engine speed (rpm) 1800–1900 1800–1900 1800–1900 1800–1900
Rated engine power with Power Management (hp (kW)) 140 (103) 155 (114) 160 (118) 165 (121)
Rated engine power (hp (kW)) 125 (92) 135 (99) 145 (107) 150 (110)
Rated engine speed (rpm) 2200 2200 2200 2200
Maximum torque Power Management (Nm @ rpm) 637 @ 1500 700 @ 1500 700 @ 1500 740 @ 1500
Maximum torque (Nm @ rpm) 560 @ 1500 605 @ 1500 650 @ 1500 650 @ 1500
Torque rise Standard and Power Management (%) 40 / 43 40 / 42 40 / 37 40 / 40
Fuel tank capacity diesel / urea (litres) 210 (250) / 39.5 210 (250) / 39.5 210 (250) / 39.5 210 (250) / 39.5
Standard Transmission
Transmission Type S-Control 8 - 24x24 gears, 8-speed Powershift S-Control 8 - 24x24 gears, 8-speed Powershift S-Control 8 - 24x24 gears, 8-speed Powershift S-Control 8 - 24x24 gears, 8-speed Powershift
Maximum Speed Forward (kp/h) 40 / 40 Eco / 50 40 / 40 Eco / 50 40 / 40 Eco / 50 40 / 40 Eco / 50
Powershuttle Standard Standard Standard Standard
Creeper - - - -
Optional Transmission 1
Transmission Type S-Control 8 - 48x48 gears, 8-speed Powershift S-Control 8 - 48x48 gears, 8-speed Powershift S-Control 8 - 48x48 gears, 8-speed Powershift S-Control 8 - 48x48 gears, 8-speed Powershift
Maximum Speed Forward (kp/h) 40 / 40 Eco / 50 40 / 40 Eco / 50 40 / 40 Eco / 50 40 / 40 Eco / 50
Powershuttle Standard Standard Standard Standard
Creeper Standard Standard Standard Standard
Optional Transmission 2
Transmission Type - - - -
Maximum Speed Forward (km/h) - - - -
Powershuttle - - - -
Creeper - - - -
Power Take Off
PTO Type Shiftable with progressive electro-hydraulic engagement Shiftable with progressive electro-hydraulic engagement Shiftable with progressive electro-hydraulic engagement Shiftable with progressive electro-hydraulic engagement
Speed Standard @ rpm 540 / 540E / 1000 @ 1969 / 1546 / 1893 540 / 540E / 1000 @ 1969 / 1546 / 1893 540 / 540E / 1000 @ 1969 / 1546 / 1893 540 / 540E / 1000 @ 1969 / 1546 / 1893
Speed Optional @ rpm 540E / 1000 / 1000E @ 1592 / 1893 / 1621 540E / 1000 / 1000E @ 1592 / 1893 / 1621 540E / 1000 / 1000E @ 1592 / 1893 / 1621 540E / 1000 / 1000E @ 1592 / 1893 / 1621
Ground drive Option Option Option Option
Shaft type
Front PTO and hitch
Speed Standard @ rpm 1000 @ 1895 1000 @ 1895 1000 @ 1895 1000 @ 1895
Front hitch lift capacity (kg) 3100 3100 3100 3100
Drive and Steering (Driveline)
2WD - - - -
4WD Yes Yes Yes Yes
Front axle suspension Option Option Option Option
Steering angle (°) 55 55 55 55
Min.turning radius (m) 4.6 4.6 4.6 4.6
Rear axle diff-lock Multi disc wet plate with management system Multi disc wet plate with management system Multi disc wet plate with management system Multi disc wet plate with management system
Service Brake Type Hydraulically operated multiple wet disc brake, self adjusting Hydraulically operated multiple wet disc brake, self adjusting Hydraulically operated multiple wet disc brake, self adjusting Hydraulically operated multiple wet disc brake, self adjusting
ABS Anti-lock braking system - - - -
Hydraulic System
System Type Fix displacement pump (Variable displacement, pressure flow compensated pump) Fix displacement pump (Variable displacement, pressure flow compensated pump) Fix displacement pump (Variable displacement, pressure flow compensated pump) Fix displacement pump (Variable displacement, pressure flow compensated pump)
Max. pump flow rate Standard / Option (litres) 86 / 150 86 / 150 86 / 150 86 / 150
System pressure (bar) 190 / 210 190 / 210 190 / 210 190 / 210
Control type Electronic Hitch Control (EHC) with hitch ride control Electronic Hitch Control (EHC) with hitch ride control Electronic Hitch Control (EHC) with hitch ride control Electronic Hitch Control (EHC) with hitch ride control
Max. lift capacity (kg) 7115 / 7864 7115 / 7864 7115 / 7864 7115 / 7864
OECD lift capacity through range @ 610 mm (kg) 4781 / 5284 4781 / 5284 4781 / 5284 4781 / 5284
Max. number of rear remotes valves 4 elec. 4 elec. 4 elec. 4 elec.
Max. number of mid mount valves 3 3 3 3
Remote valve timer control 0–30 seconds 0–30 seconds 0–30 seconds 0–30 seconds
Category type Cat. II / III Cat. II / III Cat. II / III Cat. II / III
Slip control Option Option Option Option
