Profi Classic

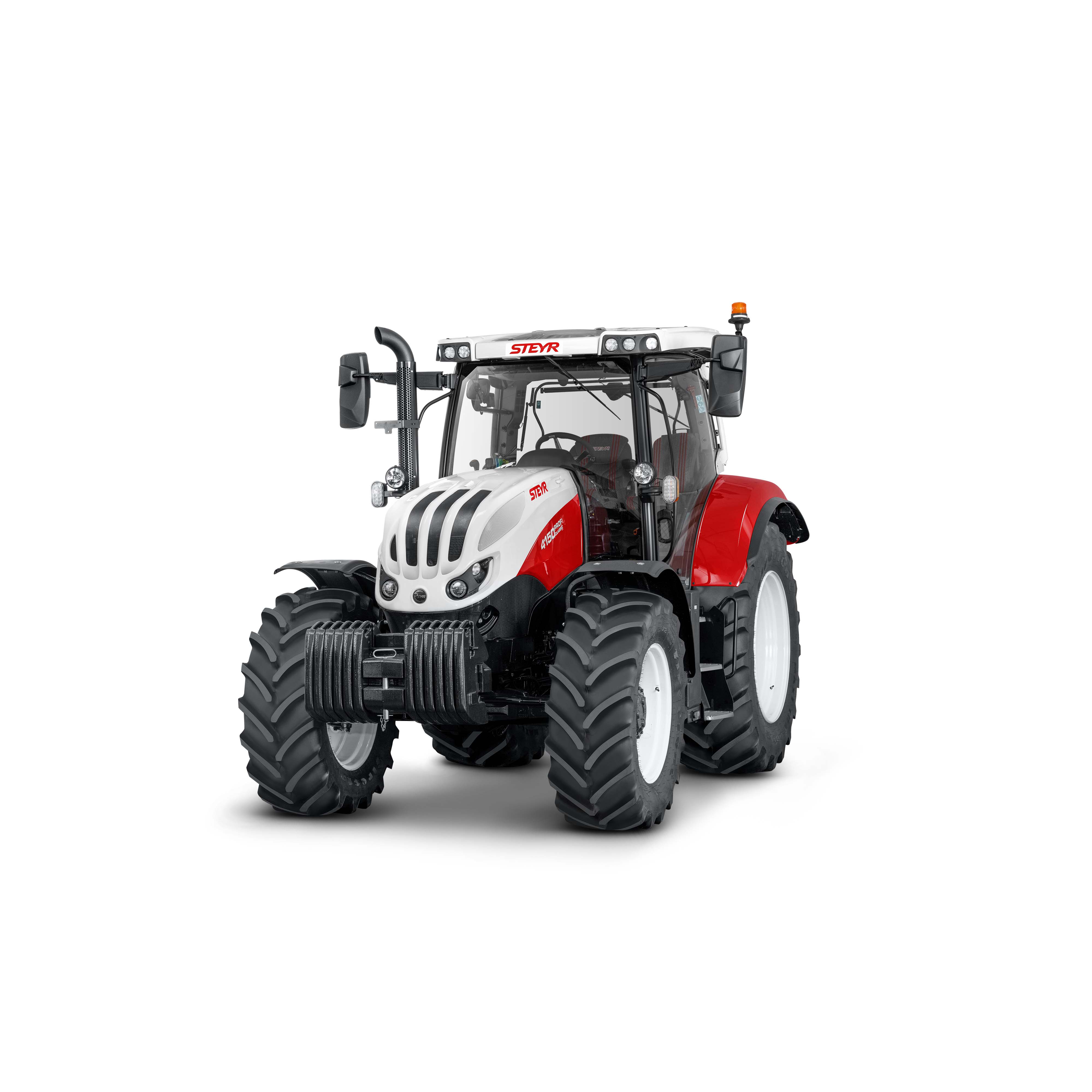

The entry-level model in the Profi Classic series, with mechanical control units, constant-displacement hydraulic pump and low roof in its standard version, impresses with its excellent level of functionality. Thanks to the environment-friendly HI-eSCR2 system on the 4.5 litre (4-cylinder) and 6.7 litre (6-cylinder) turbo diesel engine with intercooling and common-rail fuel injection, the tractors effortlessly meet Level IV of the EU exhaust emissions standard, and are therefore able to guarantee long-term economy.

Profi Classic

PROFI CLASSIC DELIVERS ON EVERYTHING

...
Low noise level for stress-free operation and for using the telephone
...
Up to 20 LED worklights for perfect 360° illumination.
...
Ergonomic operation using the Multicontroller armrest.
...
Cab and front axle suspension for more comfort.
...
PowerPlus for up to 30 hp more power.
...
Reliable, long-life S-Control 4TM, 4-stage powershift transmission with 16 x 16 gears
...
3-stage PTO speeds with Power mode or the fuel-efficient speeds of the Eco mode.
...
Maximum lifting power of up to 7,864 kg at the rear and 3,100 kg at the front.
...

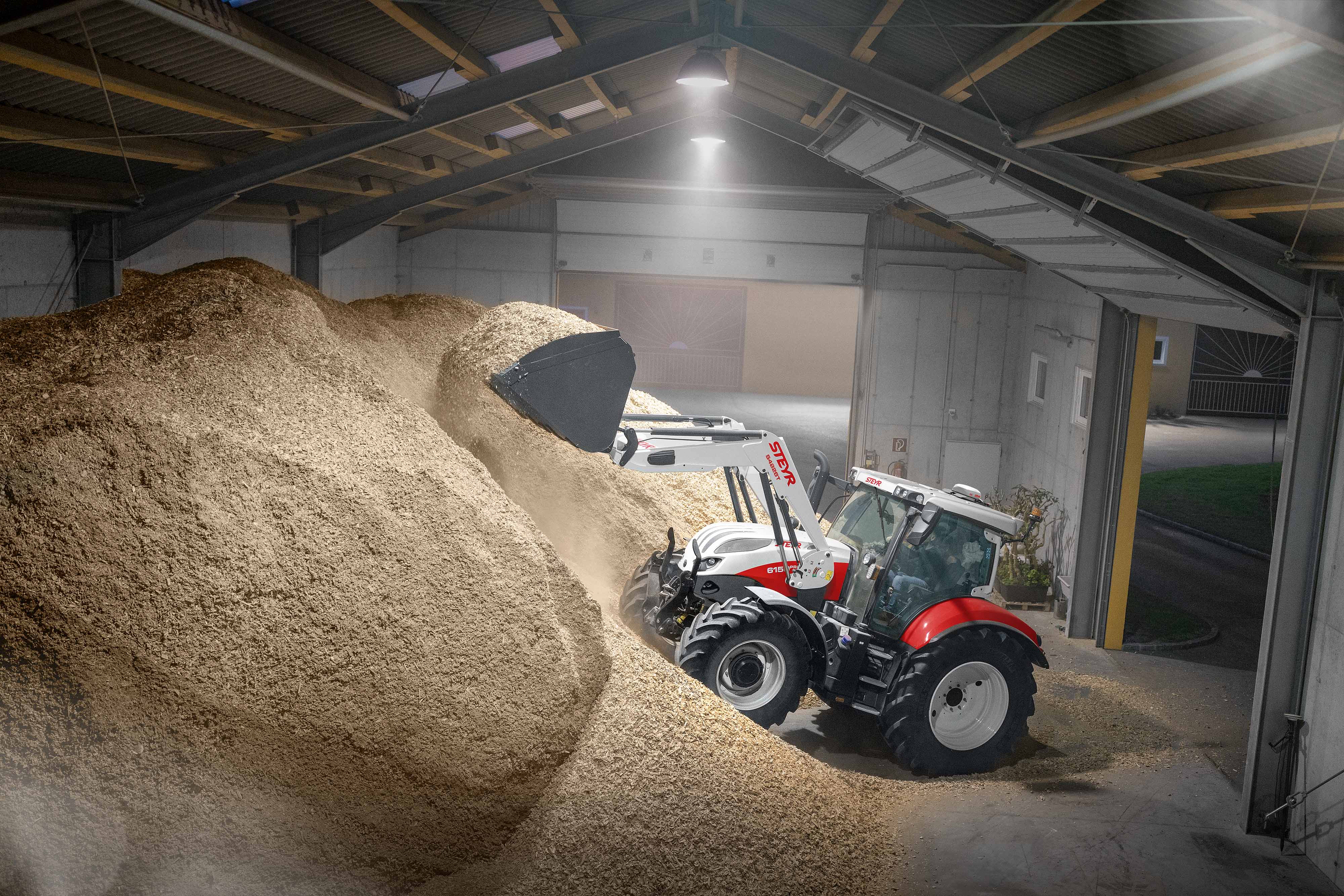

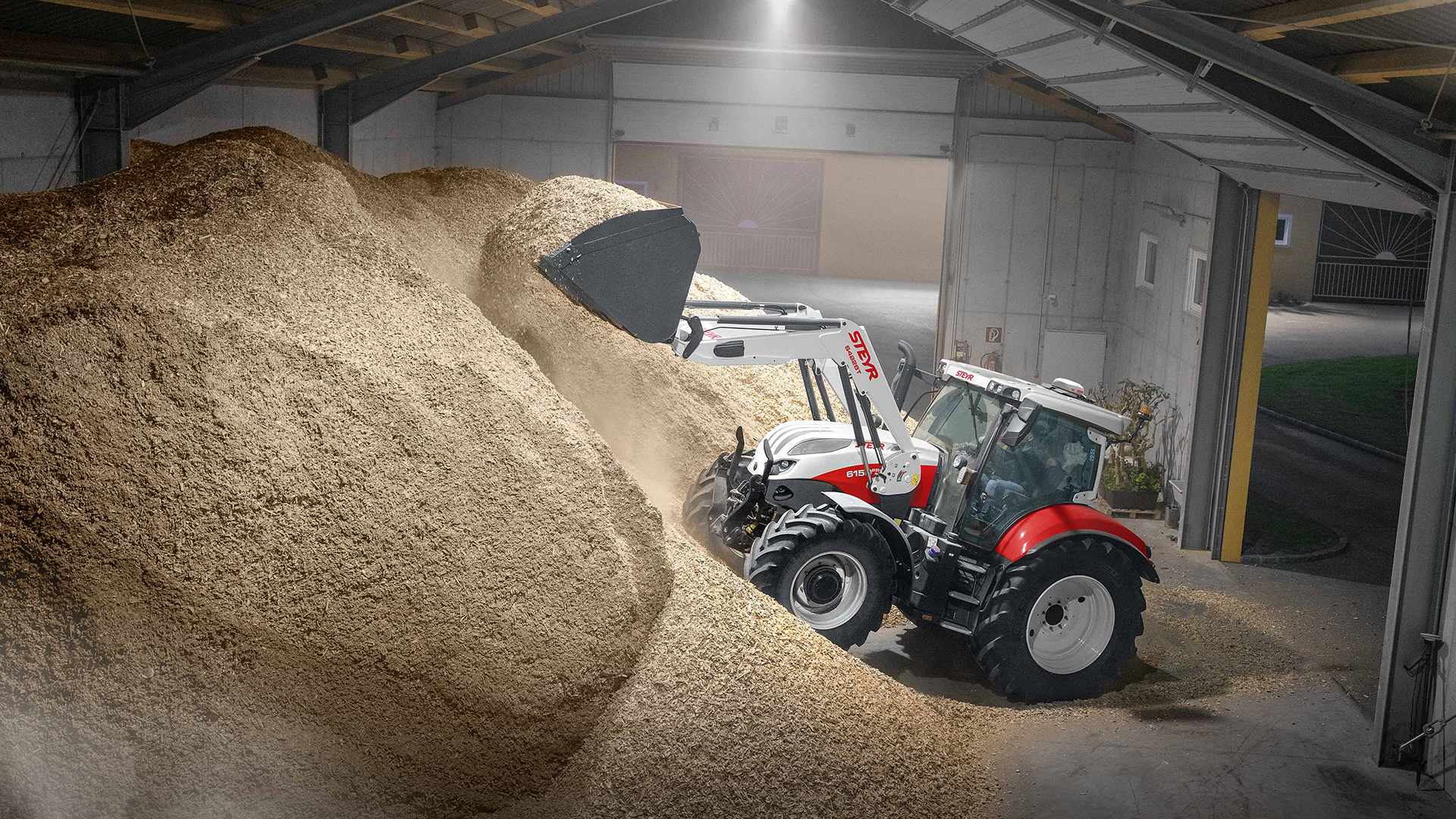

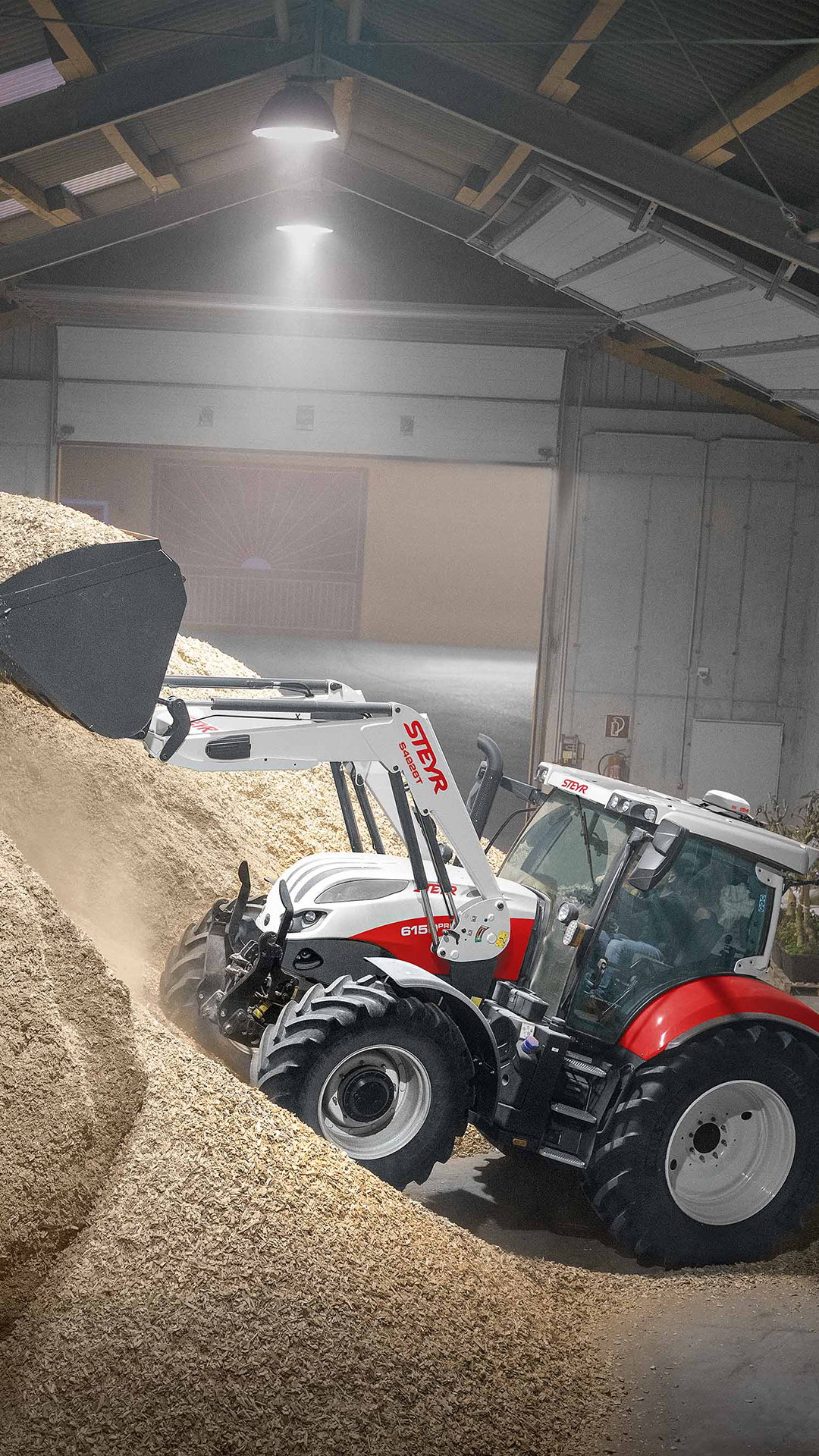

STEYR front loader ready. QuickTurn II full wheel lock at minimum steering movement especially for loader work.
...
Combinations of tyres and wheels to suit every type of application.
...
S-TECH precision farming: fully automatic turning with S-GUIDE and S-TURN II.
...
Eco mode: 50 kph achieved at a fuel-efficient 1,700 rpm.
...
PROFI CLASSIC supports the latest ISOBUS technology
LOOKS LIKE GREAT VALUE FOR MONEY

The entry-level version is the PROFI CLASSIC series, with mechanical control units, constant-displacement hydraulic pump and high roof in its standard version, it impresses with its excellent level of functionality.

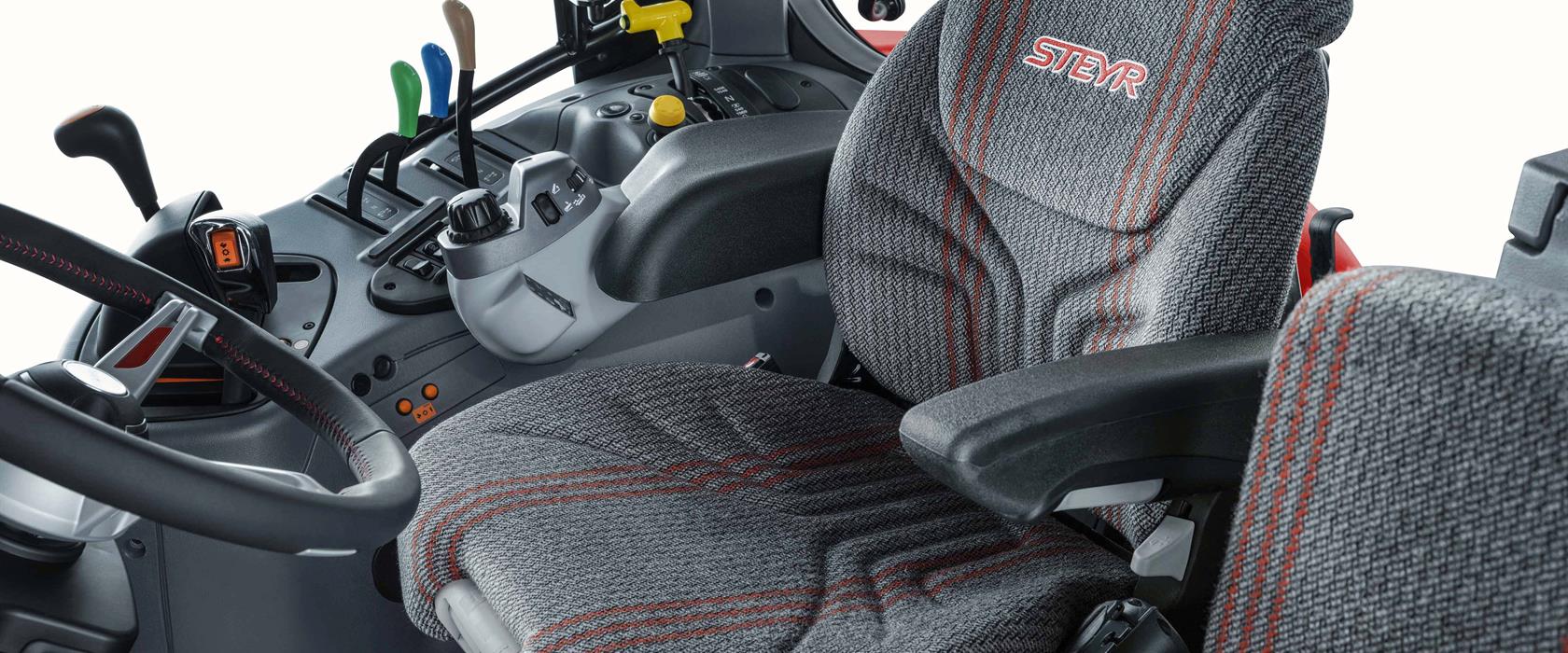

With the Comfort cab, the PROFI CLASSIC series turns long operations into a pleasure. Regardless of the type of terrain and the kind of ground the PROFI CLASSIC is driving across, the cab always provides optimum ride comfort and safety. It is accessible from both sides, and can be supplied with the low or high roof. It is also available with cab suspension.

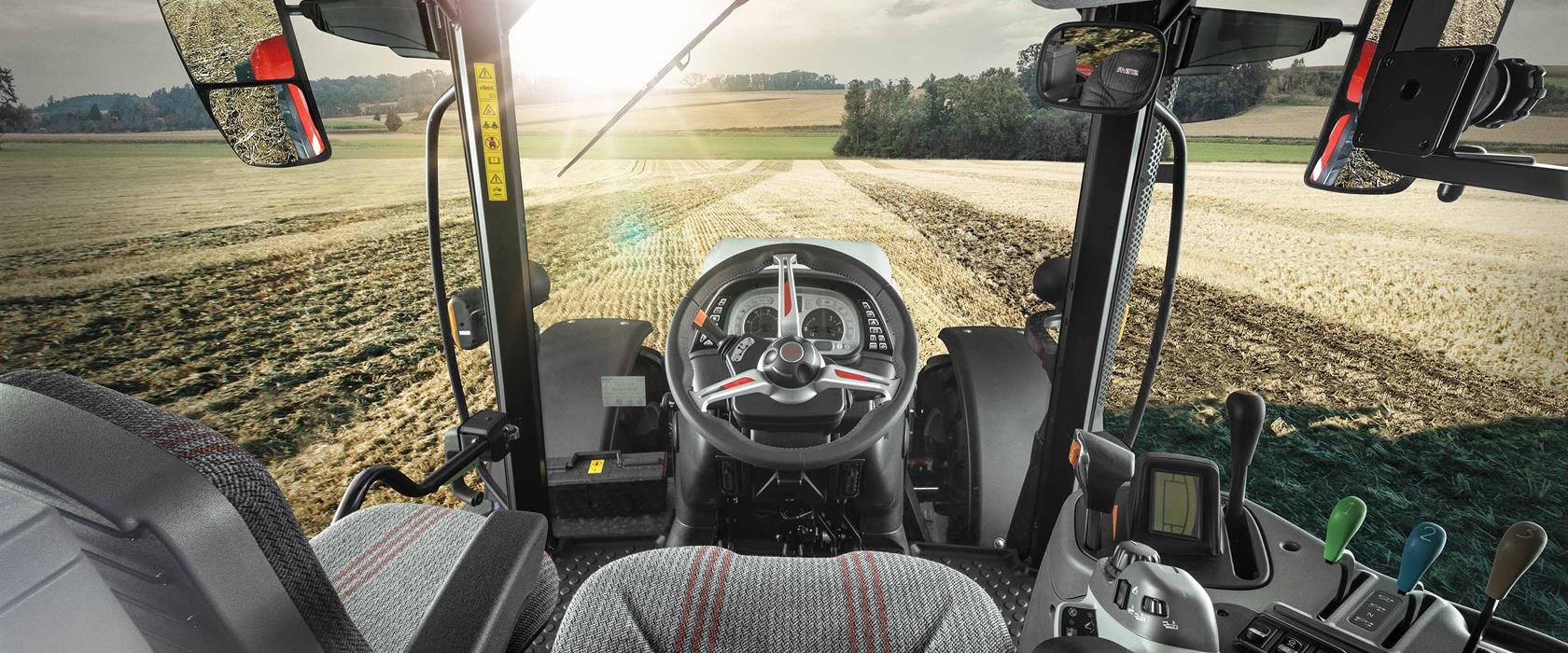

The 4-pillar panorama cab with its large windows, its high-visibility roof window and a one-piece front windscreen gives you perfect and unrestricted all-round visibility. The LED work light package assures superlative visibility even after night has fallen.

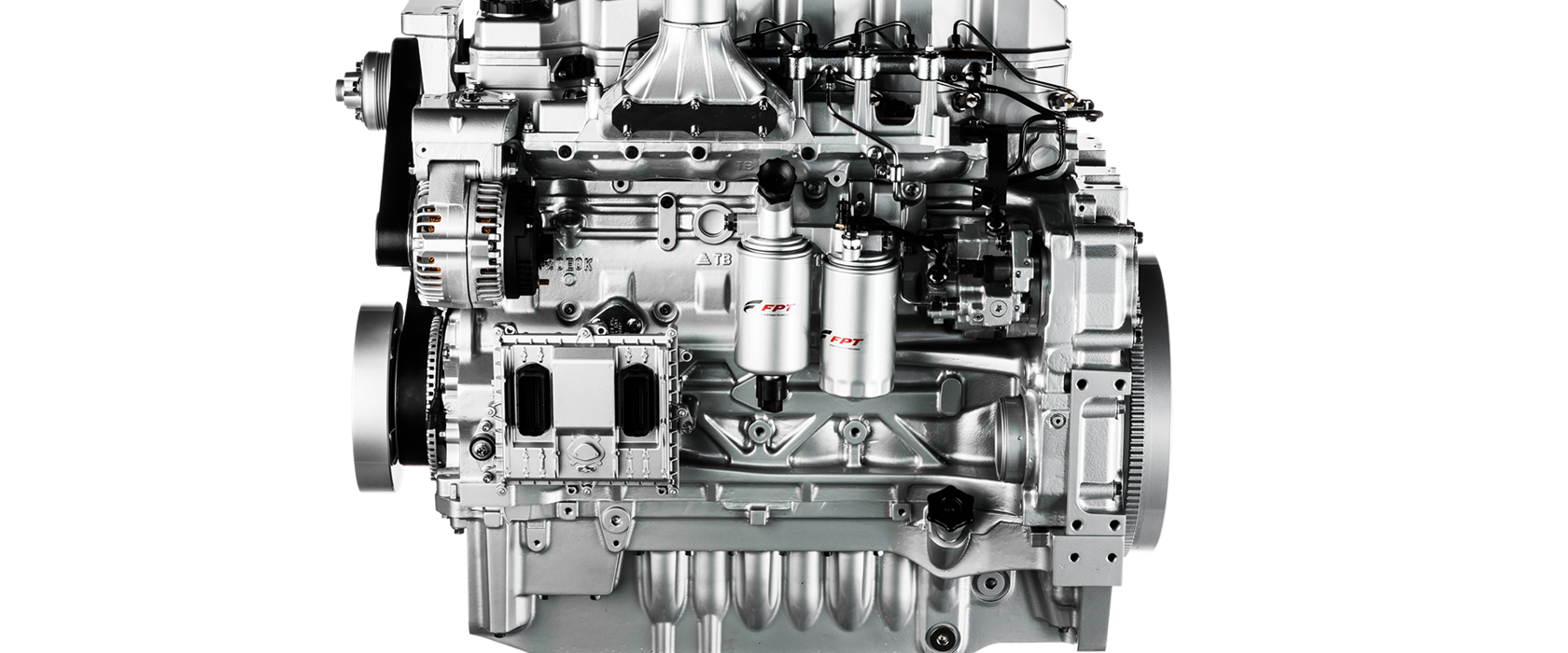

The electronically controlled diesel engines effortlessly take care of all power work even at low engine speeds. The PROFI CLASSIC range today covers a nominal power range of 125 to 150 hp. The main working range of the engine, between 1,500 and 1,900 rpm, is able, thanks to PowerPlus, to deliver an extra 30 hp of power at all times.

Efficiency was the number one priority in the development of STEYR PROFI transmissions. Depending on the version, these transmissions are always equipped with Powershuttle and 4-speed power shift. You can choose between the S-ControlTM 4 gearbox with 16 x 16 gears with 40 km/h or with 32x32 gears with creeper gear group.

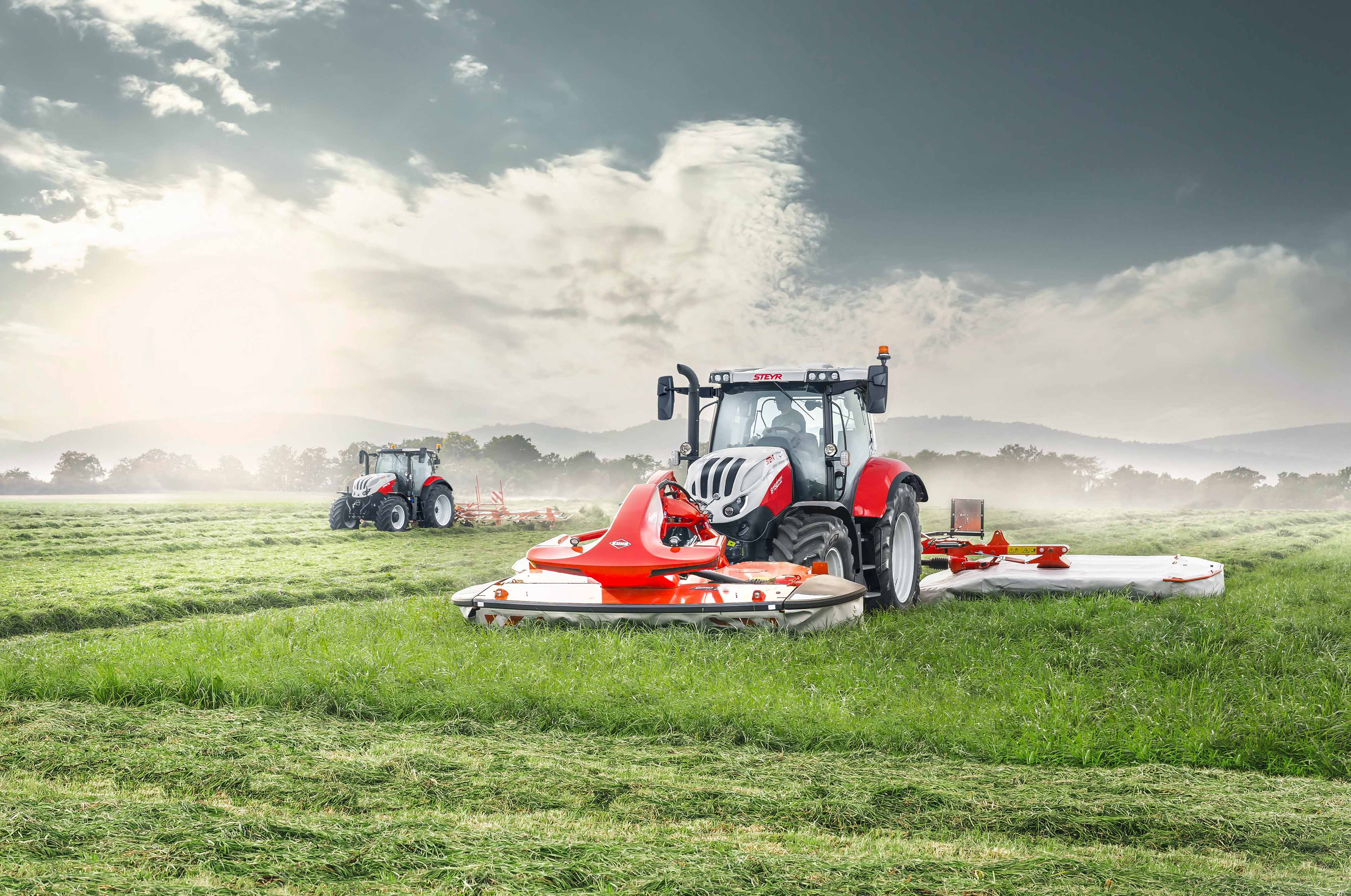

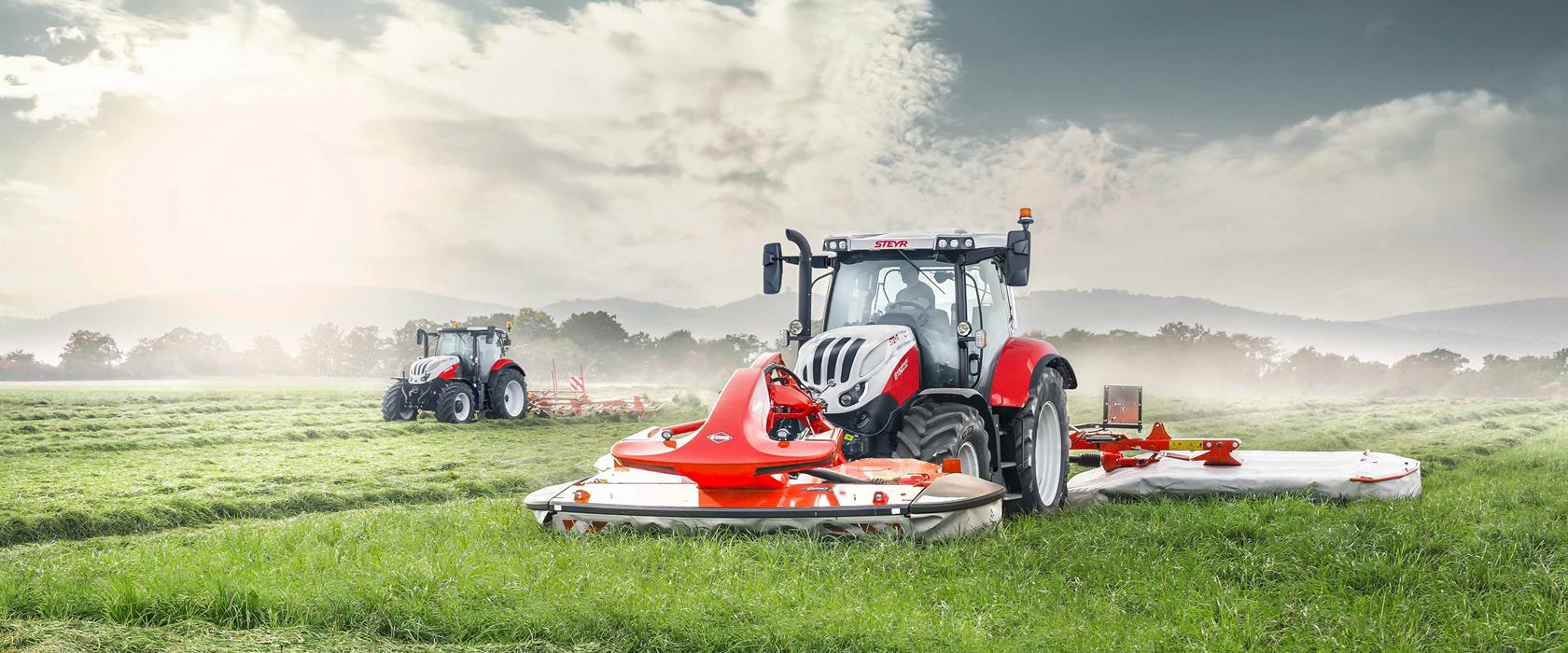

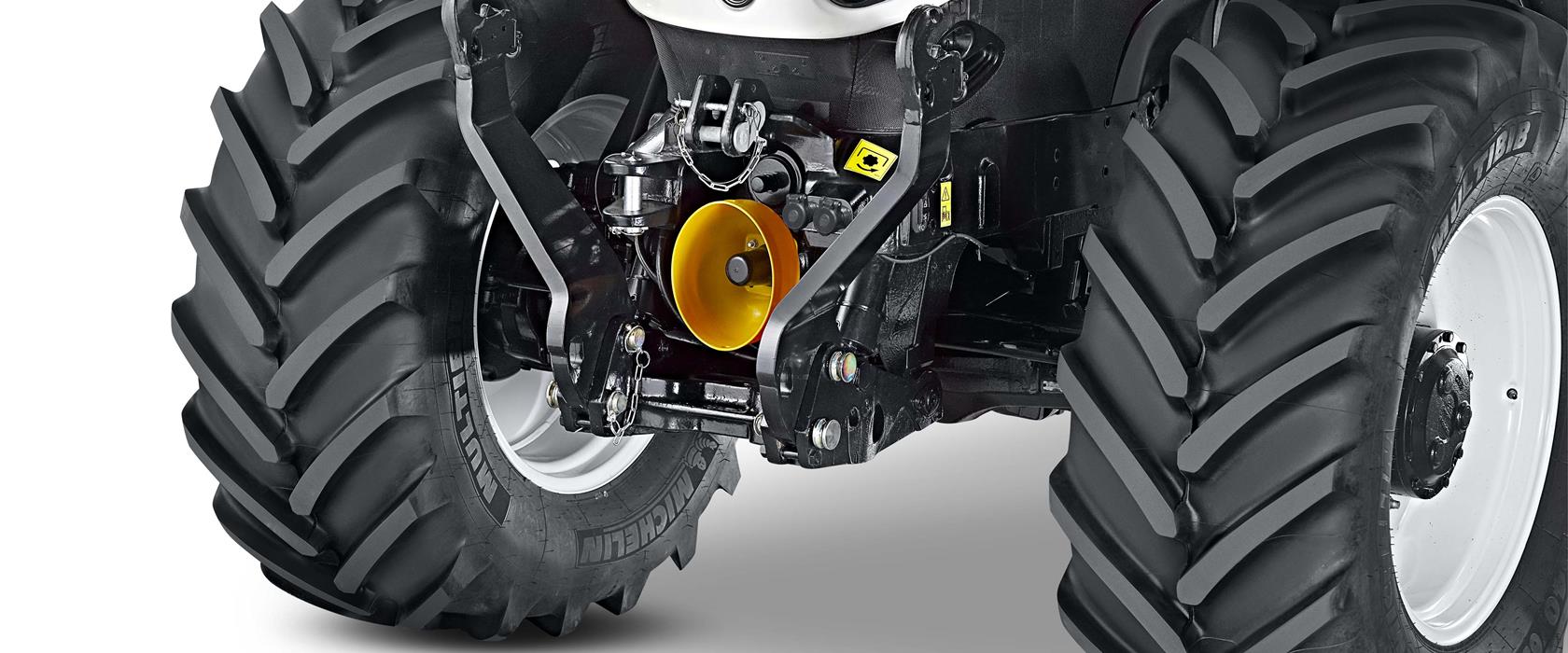

The PTO on the PROFI CLASSIC series has a choice of three different operating speeds. To make full use of the power of PROFI CLASSIC models at front and back simultaneously, for example when operating a combination of front and rear-mounted mowing equipment, a front hitch with front-mounted PTO shaft is available as an option to boost your productivity.

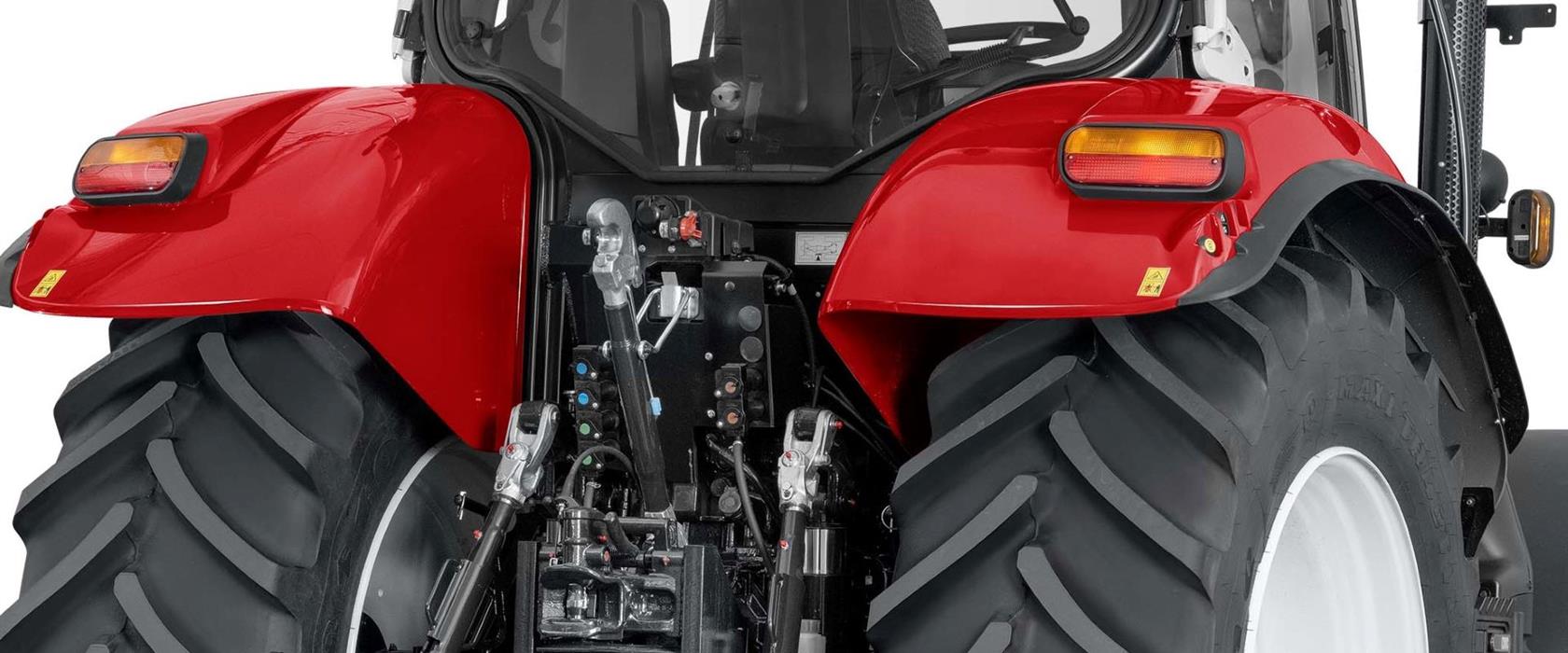

The hitch and the auxiliary control units on our STEYR PROFI CLASSIC models are powered by an OCLS hydraulic system (open oil circuit) with a pumpflow of 86 l/min or by a CCLS hydraulic system (closed oil circuit) at a displacement rate of 121 l/min. This system assures full performance at the right time and at the right place.

The power of the PROFI CLASSIC models can be delivered to the ground and used comfortably with great precision. This is because, as well as active traction management, the tractors also have many other features that optimise the steering and braking characteristics in every situation. With a PROFI CLASSIC you can get everything done well and reliably. That is as true of on-road operations as it is of pasture land, fieldwork, and forestry operations, and of work on steep terrain or in confined farmyard environments.

WORKING MORE EFFICIENTLY

STRAIGHT LINES SAVE MONEY
SECTION CONTROL
S-TECH 700 PLUS
S-FLEET
STRAIGHT LINES SAVE MONEY
The automatic DGPS-based S-guide steering system assures parallel tramline guidance for work in straight lanes, on curves and in the headlands. The system guarantees 100 % network coverage and uses the revolutionary X-FILL technology to bridge signal losses lasting up to 20 minutes. With a precision of up to as little as 1.5 cm through an owned comprehensive RTK⁺ network, there is no risk of overlapping even with tough ground or weather conditions.
STRAIGHT LINES SAVE MONEY
SECTION CONTROL
The technology will automatically switch sections on/off in areas that have already been covered to avoid overlap on passes in field, at headland turns and irregular fields shapes. This lowers your operation’s input costs by eliminating double applications of seed and fertiliser.
SECTION CONTROL
S-TECH 700 PLUS

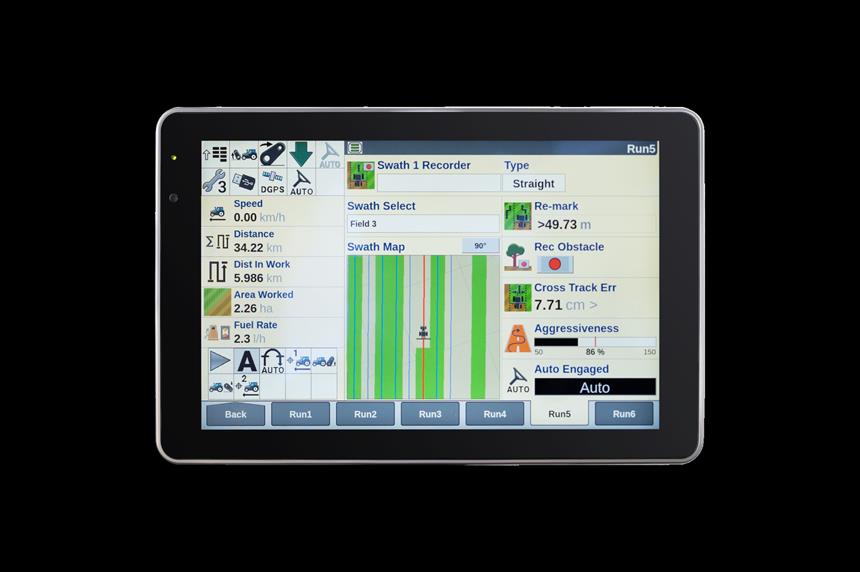

The S-TECH 700 Plus touchscreen monitor offers an effective control and precision guidance system for arable farming. ISOBUS II-compatible attachments can easily be connected and controlled without additional wiring simply using the monitor
S-TECH 700 PLUS
S-FLEET
S-FLEET lets you remotely monitor and manage your farm, fleet and data, allowing you to optimise your performance, productivity and flexibility. Efficiently visualise your equipment with little to no idle time. With all the information at your fingertips, you can successfully manage your operations anytime, anywhere!
S-FLEET
STEYR Profi Brochure
4125 PROFI CLASSIC 6150 PROFI CLASSIC
Number of cylinders 4 6
Engine
Type Common Rail Diesel engine with 16 valves, turbocharged and intercooled Common Rail Diesel engine with 24 valves, turbocharged and intercooled
Emission Level Stage V Stage V
Capacity (cm³) 4485 6728
Engine Performance
Maximum engine power with Power Management (hp (kW)) 155 (114) 175 (129)
Maximum engine power (hp (kW)) 135 (99) 158 (116)
@ engine speed (rpm) 1800–1900 1800–1900
Rated engine power with Power Management (hp (kW)) 140 (103) 165 (121)
Rated engine power (hp (kW)) 125 (92) 145 (107)
Rated engine speed (rpm) 2200 2200
Maximum torque Power Management (Nm @ rpm) 637 @ 1500 740 @ 1500
Maximum torque (Nm @ rpm) 560 @ 1500 650 @ 1500
Torque rise Standard and Power Management (%) 40 / 43 40 / 40
Fuel tank capacity diesel / urea (litres) 210 (250) / 39.5 210 (250) / 39.5
Standard Transmission
Transmission Type S-Control 4 - 16x16 gears, 4-speed Powershift S-Control 4 - 16x16 gears, 4-speed Powershift
Maximum Speed Forward (kp/h) 40 40
Powershuttle Standard Standard
Creeper 0 0
Optional Transmission 1
Transmission Type S-Control 4 - 32x32 gears, 4-speed Powershift S-Control 4 - 32x32 gears, 4-speed Powershift
Maximum Speed Forward (kp/h) 40 40
Powershuttle Standard Standard
Creeper Standard Standard
Optional Transmission 2
Transmission Type - -
Maximum Speed Forward (km/h) - -
Powershuttle - -
Creeper - -
Power Take Off
PTO Type Shiftable with progressive electro-hydraulic engagement Shiftable with progressive electro-hydraulic engagement
Speed Standard @ rpm 540 / 540E / 1000 @ 1969 / 1546 / 1893 540 / 540E / 1000 @ 1969 / 1546 / 1893
Speed Optional @ rpm 540E / 1000 / 1000E @ 1592 / 1893 / 1621 540E / 1000 / 1000E @ 1592 / 1893 / 1621
Ground drive Option Option
Shaft type
Front PTO and hitch
Speed Standard @ rpm 1000 @ 1895 1000 @ 1895
Front hitch lift capacity (kg) 3100 3100
Drive and Steering (Driveline)
2WD - -
4WD Yes Yes
Front axle suspension Option Option
Steering angle (°) 55 55
Min.turning radius (m) 4.6 4.6
Rear axle diff-lock Multi disc wet plate with management system Multi disc wet plate with management system
Service Brake Type Hydraulically operated multiple wet disc brake, self adjusting Hydraulically operated multiple wet disc brake, self adjusting
ABS Anti-lock braking system - -
Hydraulic System
System Type Fix displacement pump (Variable displacement, pressure flow compensated pump) Fix displacement pump (Variable displacement, pressure flow compensated pump)
Max. pump flow rate Standard / Option (litres) 86 / 121 86 / 121
System pressure (bar) 190 / 210 190 / 210
Control type Electronic Hitch Control (EHC) with hitch ride control Electronic Hitch Control (EHC) with hitch ride control
Max. lift capacity (kg) 7115 / 7864 7115 / 7864
OECD lift capacity through range @ 610 mm (kg) 4781 / 5284 4781 / 5284
Max. number of rear remotes valves 4 mechan. 4 mechan.
Max. number of mid mount valves 2 2
Remote valve timer control - -
Category type Cat. II / III Cat. II / III
Slip control Option Option
