Terrus CVT

The new TERRUS CVT brings you a brand-new level of comfort, performance, efficiency and advanced connectivity. Introducing itself as the strongest STEYR tractor for the toughest jobs and greatest ambitions, it also welcomes you in the new avant-garde cab: more space for a dynamic working experience, a new operator interface and new armrest design. Straight ahead. Made in Austria, to make the difference.

Terrus CVT

CONNECTED IN EVERY ASPECT

slide 6 to 12 of 18
STRAIGHT AHEAD – READY FOR ACTION

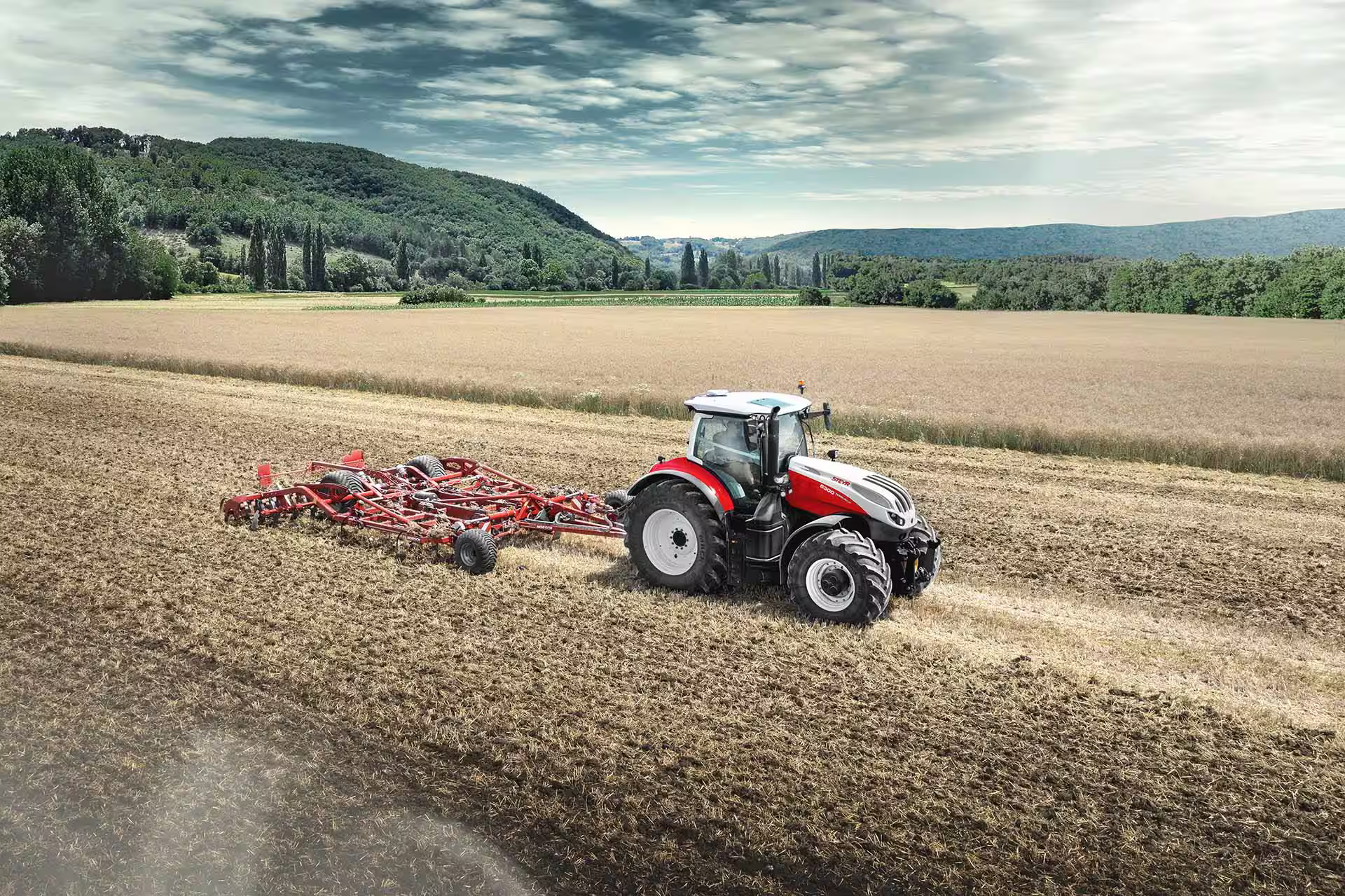

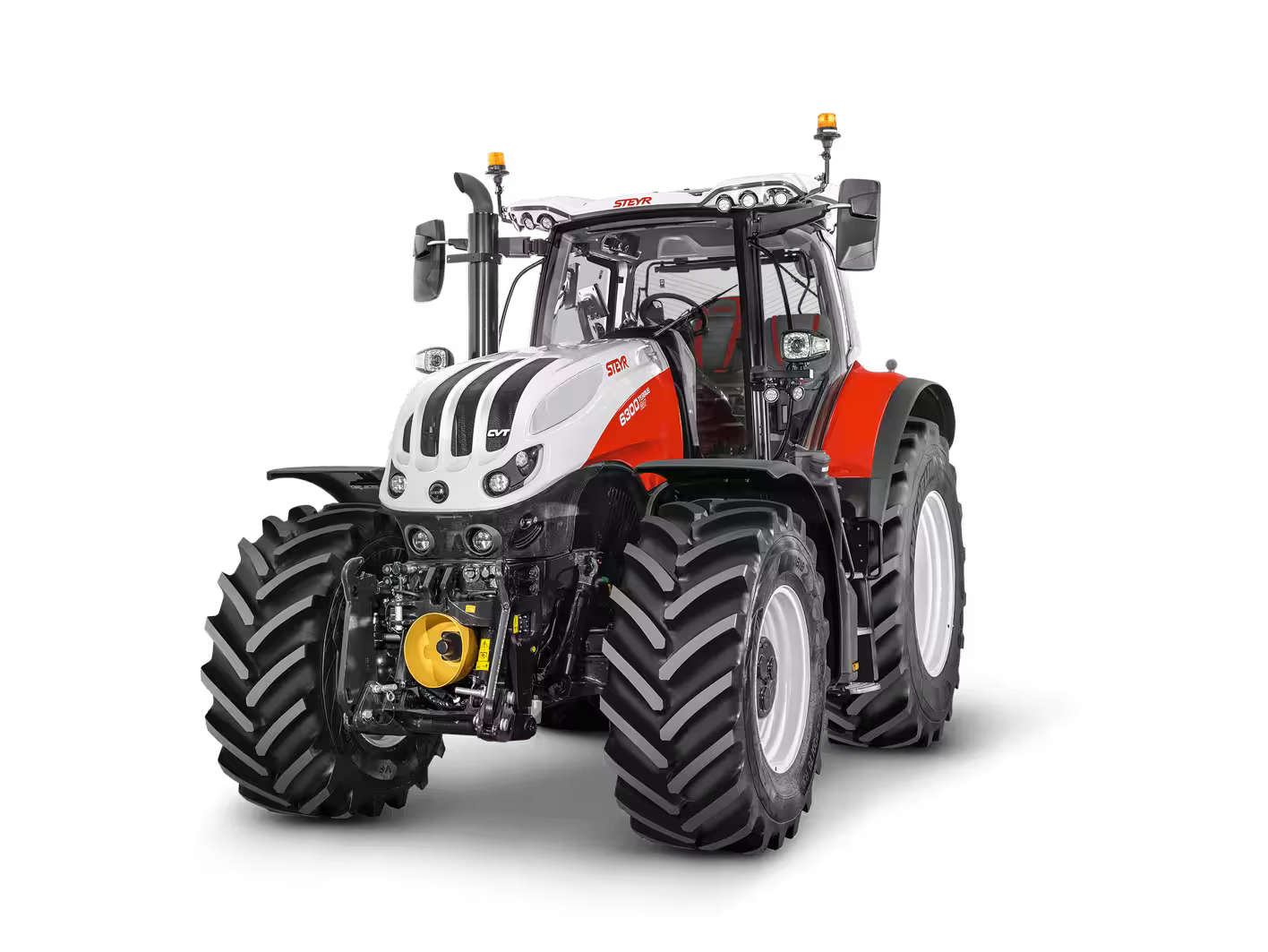

 There is a choice of three models, equipped with ultra-efficient and reliable engines, one rated for 250hp, and the others for 271 and 300hp. With its ideal power-to-weight ratio, the TERRUS CVT is predestined for rapid transport duties as well as for heavy-duty field work. This, our most powerful tractor, also has other strengths – in particular exceptional levels of comfort: a suspended front axle combined with a luxurious and remarkably quiet cab make work a relaxed and fatigue-free activity. Also on board: the very latest technologies, such as S-TECH precision farming, S-GUIDE automated steering system, S-TURN II automated turning, ISOBUS III and Easy-Tronic II headland management system, as well as S-FLEET telematic solutions. Straight ahead. Made in Austria, to make the difference.

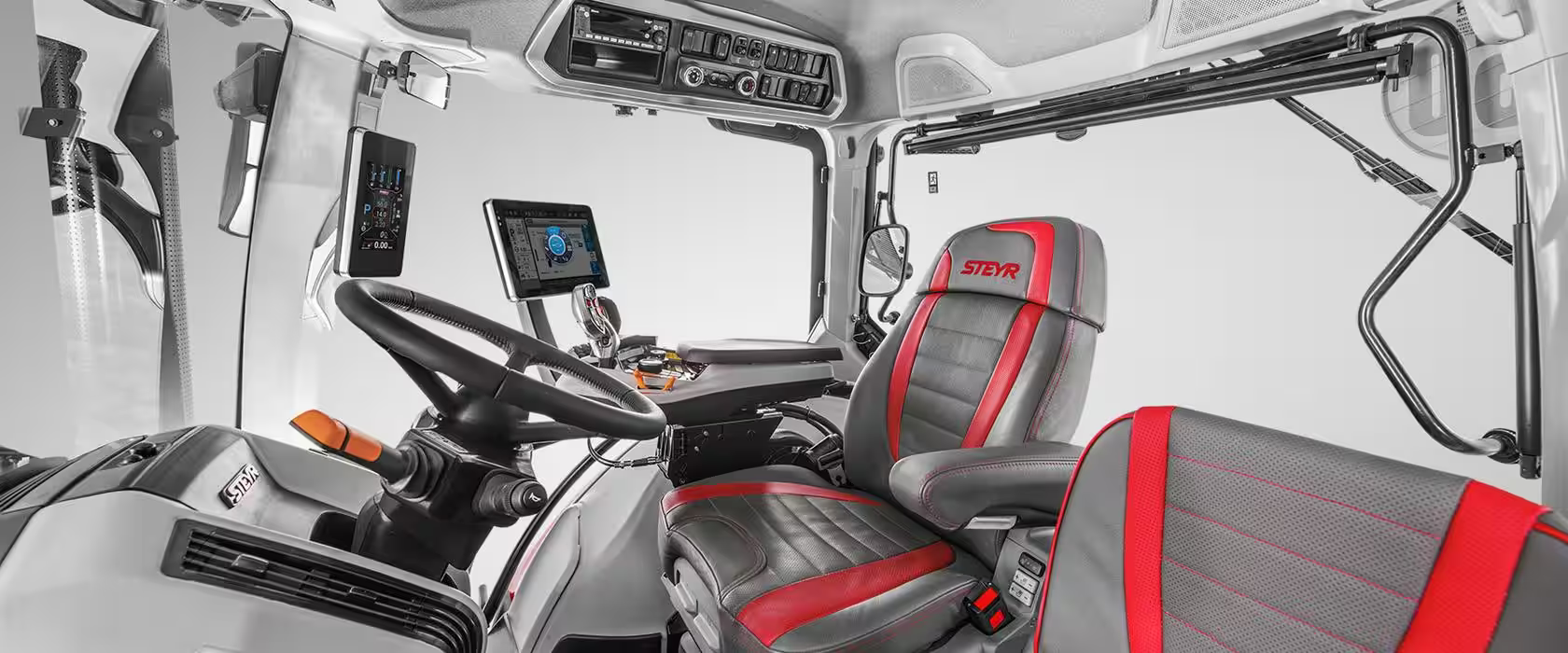

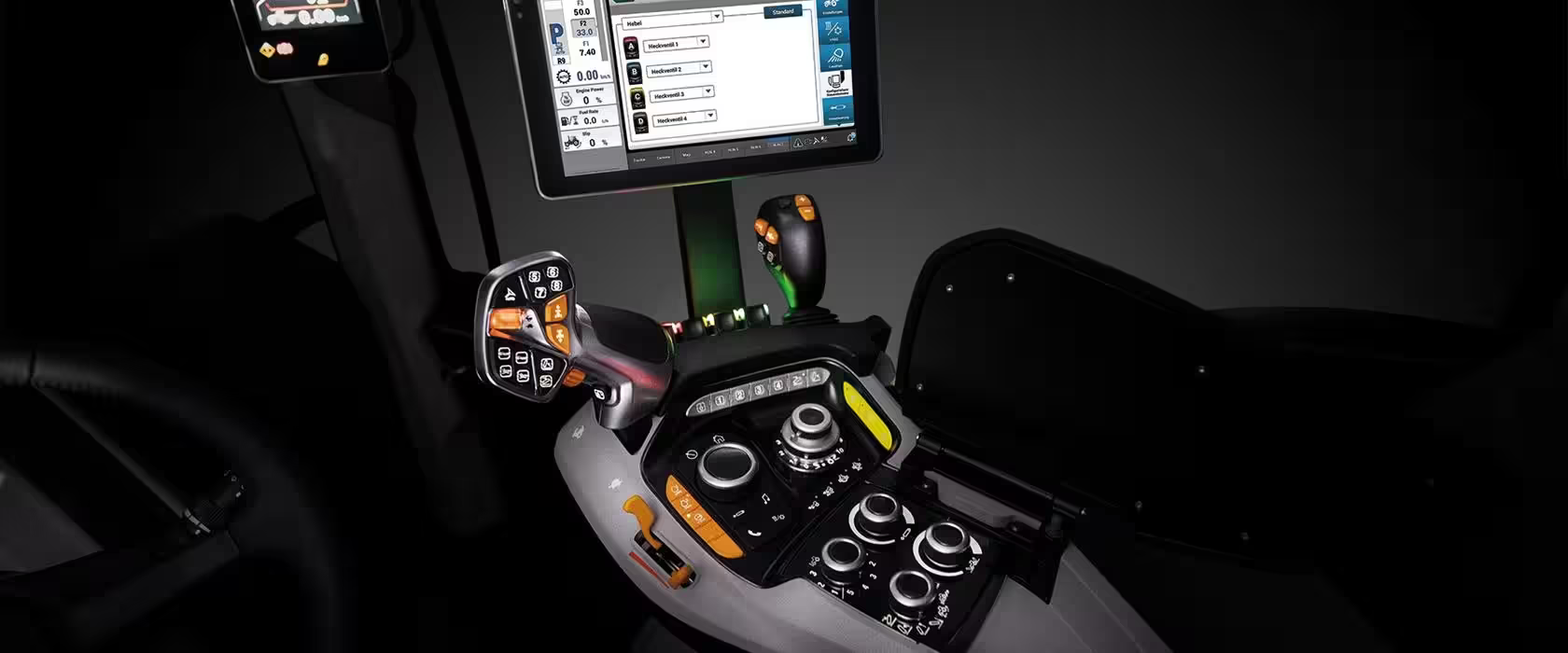

 Work in premium-class comfort, with innovative controls that mean you can operate your TERRUS CVT to exactly suit you and your operation.The cab offers a working area you can rely upon fully in all situations: A low noise level of only 66dB(A), ergonomic seating and steering wheel adjustments, finely adjustable air conditioning and our sophisticated suspension and lighting system ensure maximum comfort

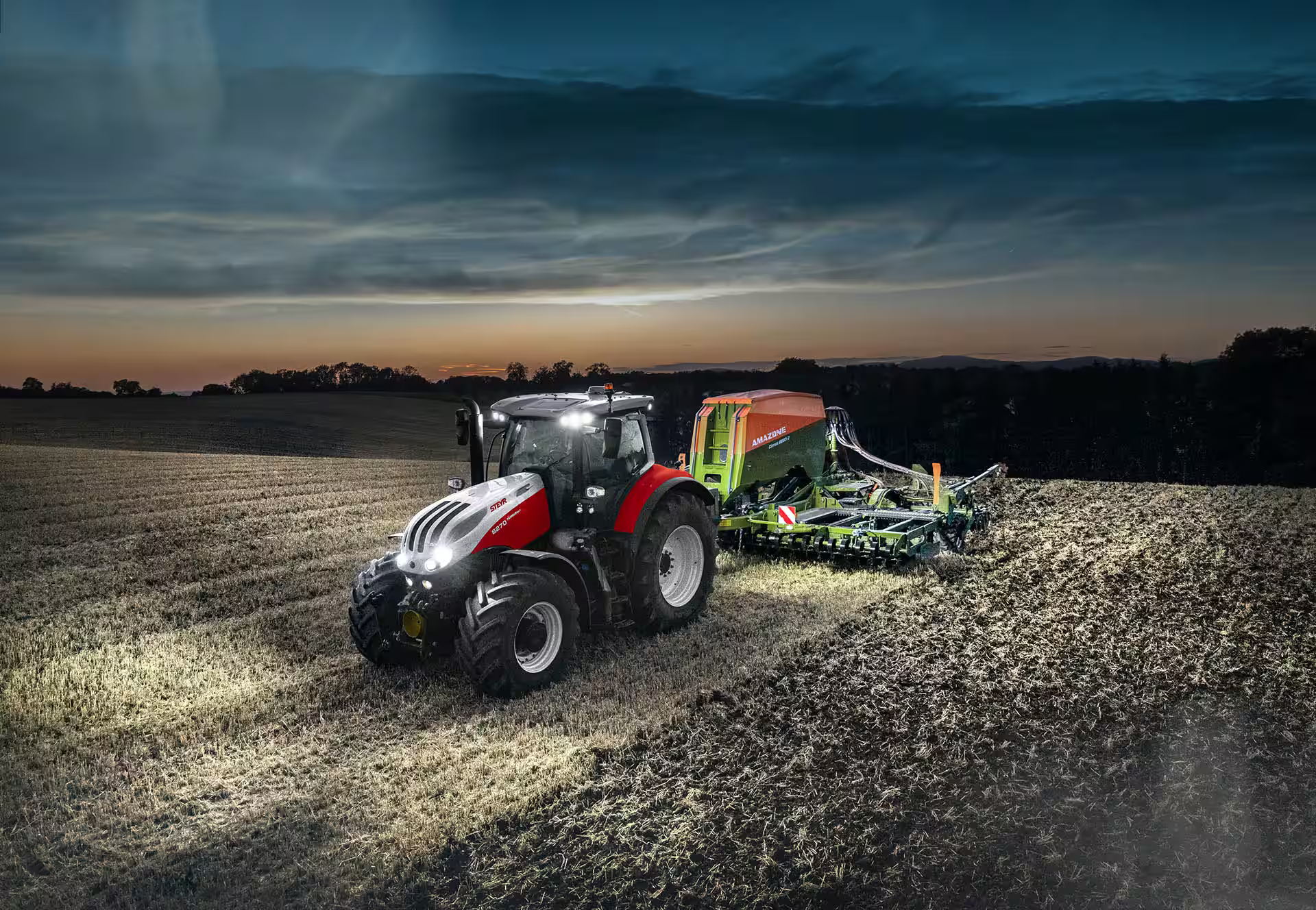

 With its 4-pillar panorama cab with its large windows, its high-visibility roof window and a one-piece front windscreen, you have perfect and unrestricted allround visibility. The LED work light package assures superlative visibility even after night has fallen.

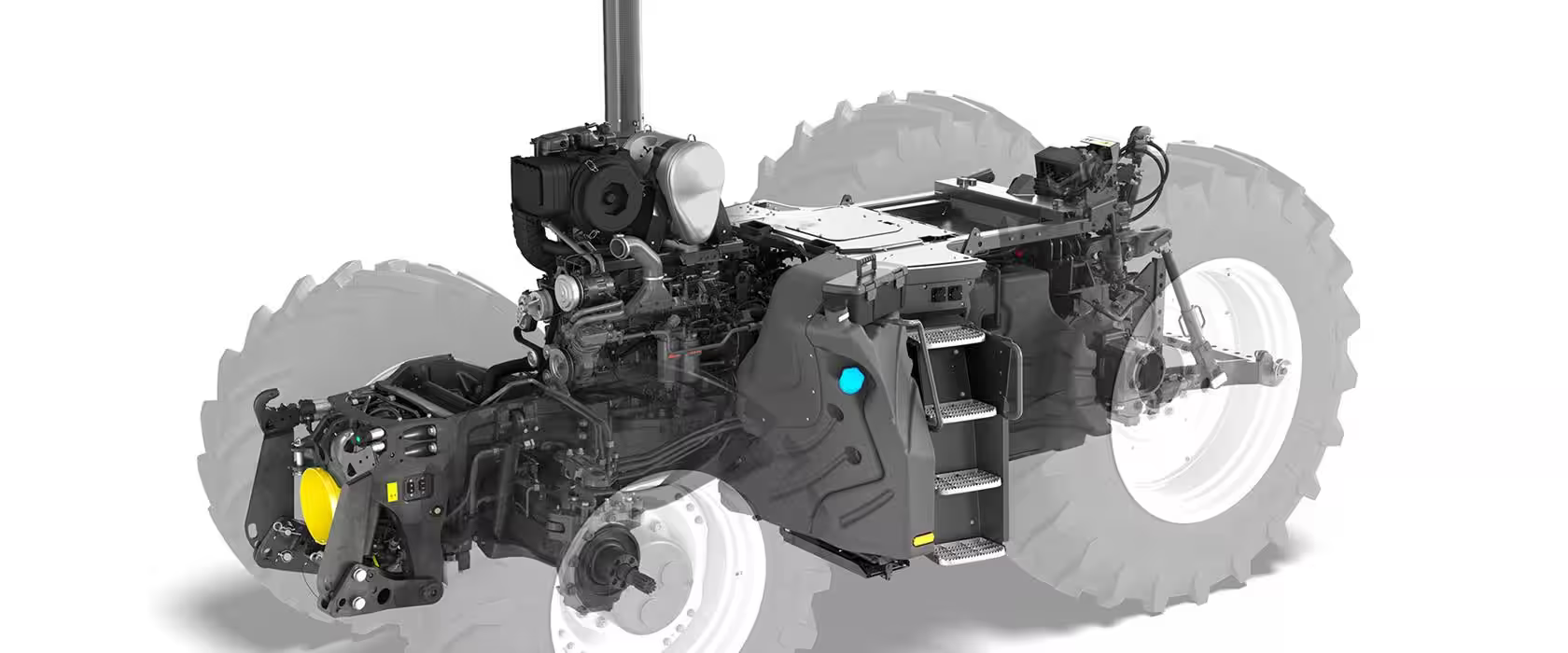

 The engines in the Terrus CVT models are all the best in their class. Here, profitability, productivity, environmental preservation and ultra-modern energy management come together in perfect symbiosis. By virtue of the unique HI-eSCR2 exhaust gas after-treatment system, fuel consumption is optimised and power and engine response are improved. Optimum fuel injection time without exhaust gas recirculation means neither the engine nor the cooling system are overloaded. This makes maintenance intervals of 750 a reality.

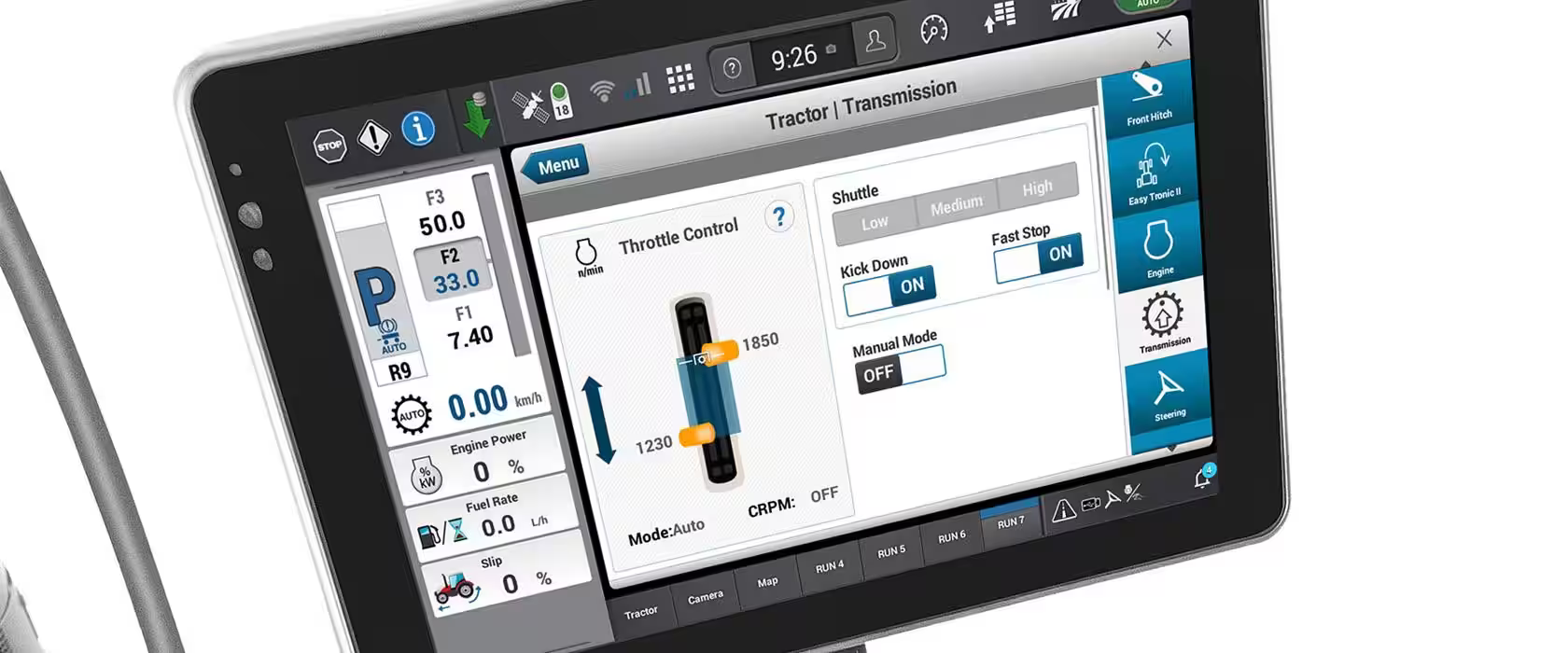

 Individually set-up your S-Control™ CVT transmission settings according to your operation. Maximum torque with minimum fuel consumption, electronic control that permits even faster changes in direction and active stationary control to stop safely on a steep gradient: the continuously variable S-Control™ CVT transmission is a leader in comfort and efficiency.

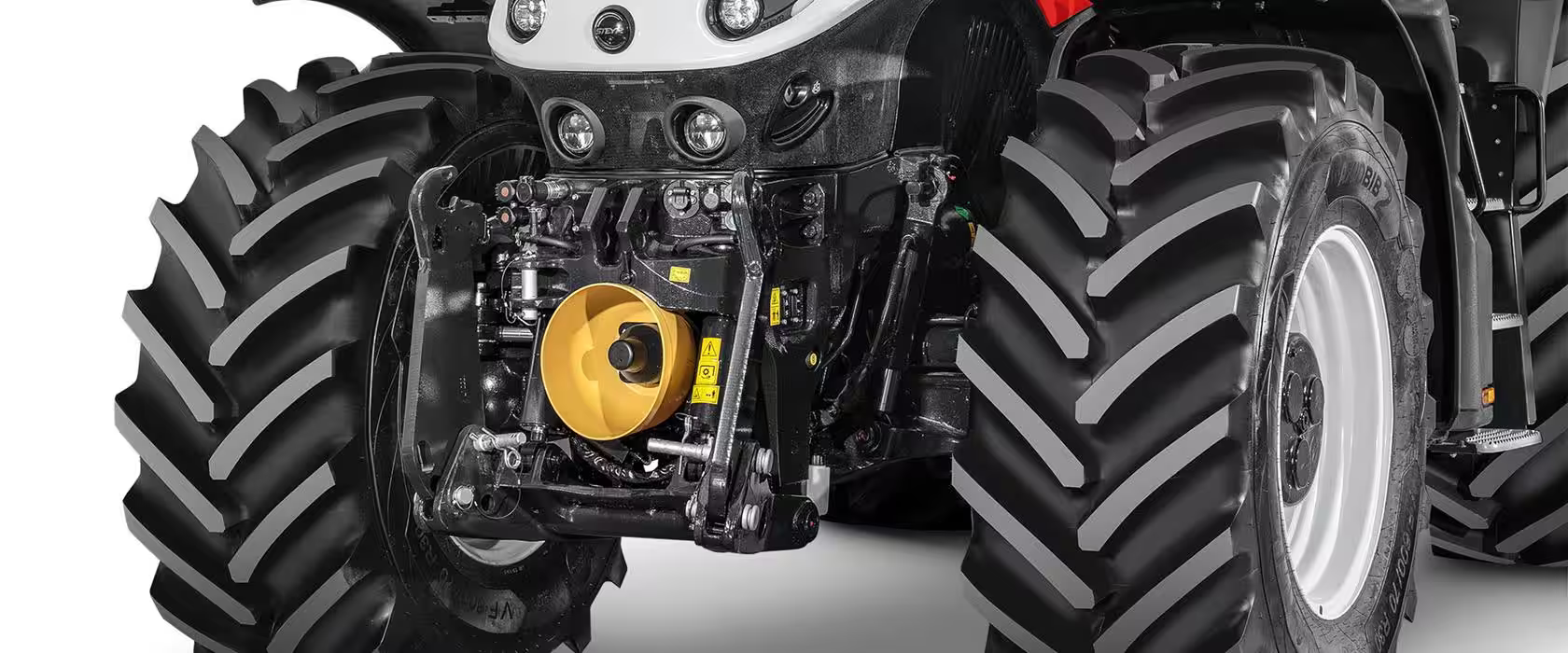

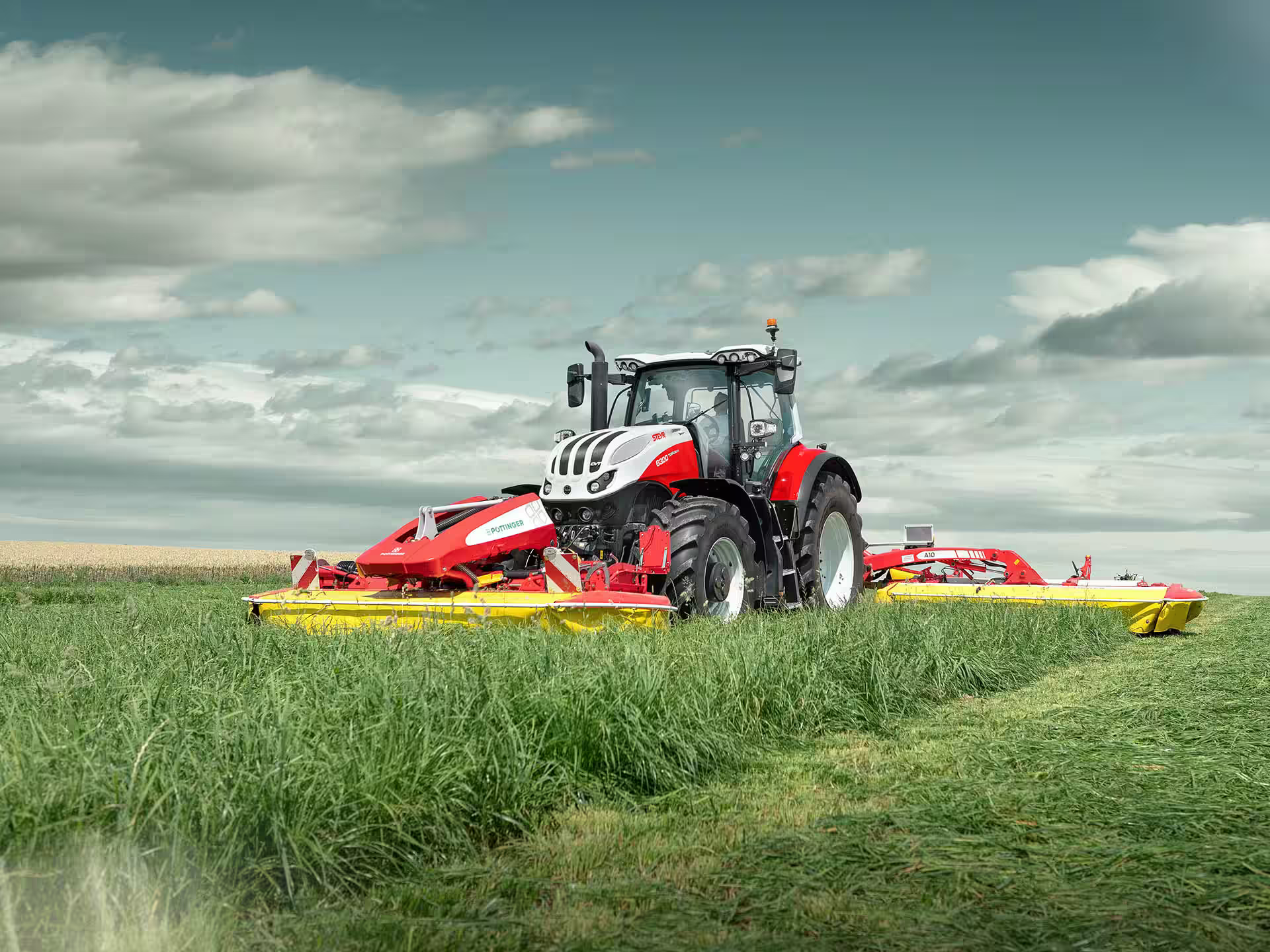

 The STEYR front linkage has a lift capacity of 6,016kg for the biggest of front mounted implements. The 2-speed front PTO option offers 1,000 and 1,000E rpm speeds. Those are achieved at an engine rpm of 1,886, the optimum range for power, and at 1,585rpm for best efficiency. Attaching an implement is made safer and easier via easy-to-access remote hitch switches, and the optional camera provides an in cab view of the implement at work.

 The loadsensing hydraulic system of the TERRUS CVT is based on an axial piston variable displacement pump with an oil delivery rate of up to 220l/min. Up to 8 independent valves can be supplied with oil at the same time. The delivery rate and duration can be set individually for each electrical remote valve. This guarantees an excellent response behavior for all connected implements.

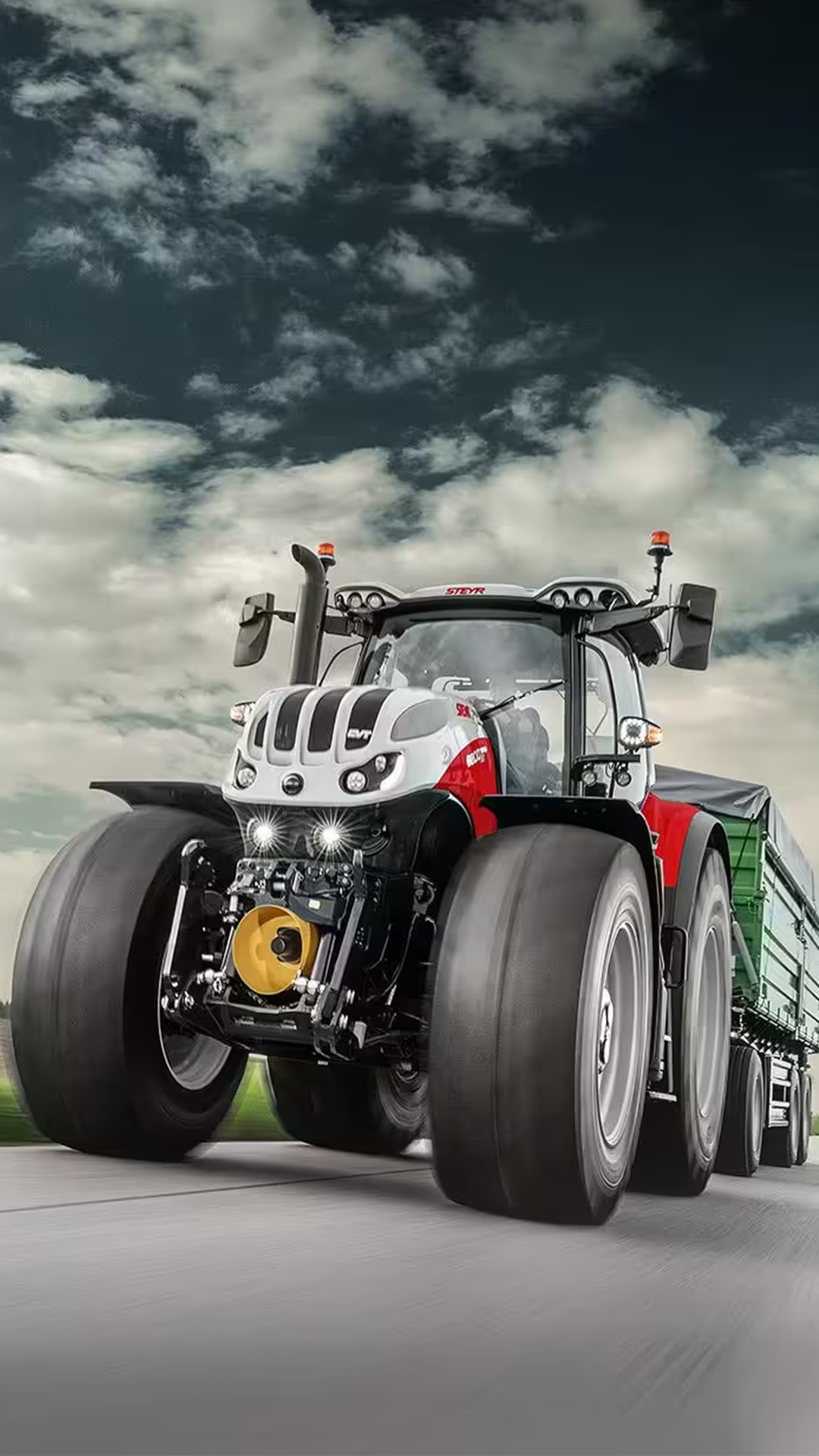

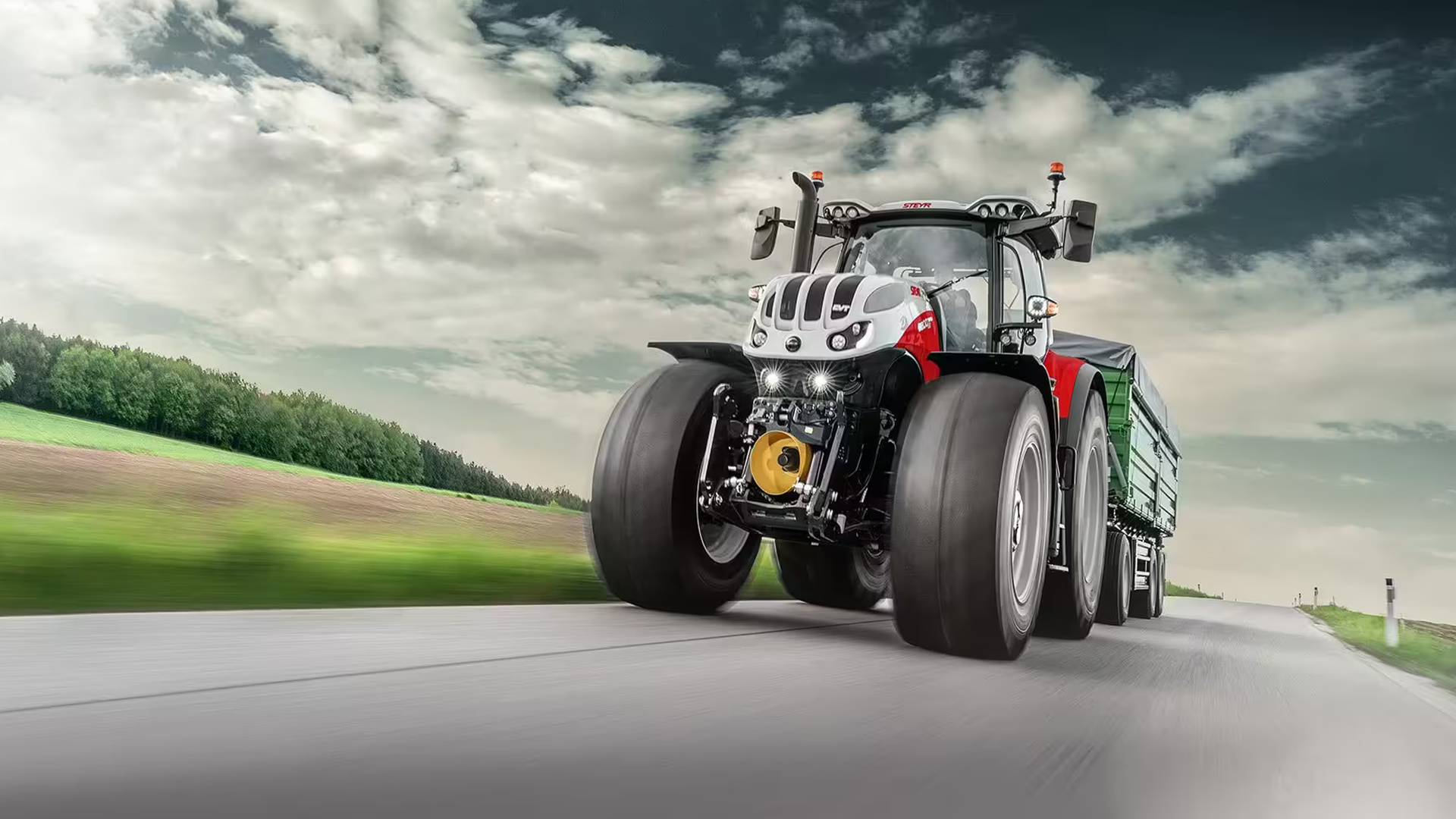

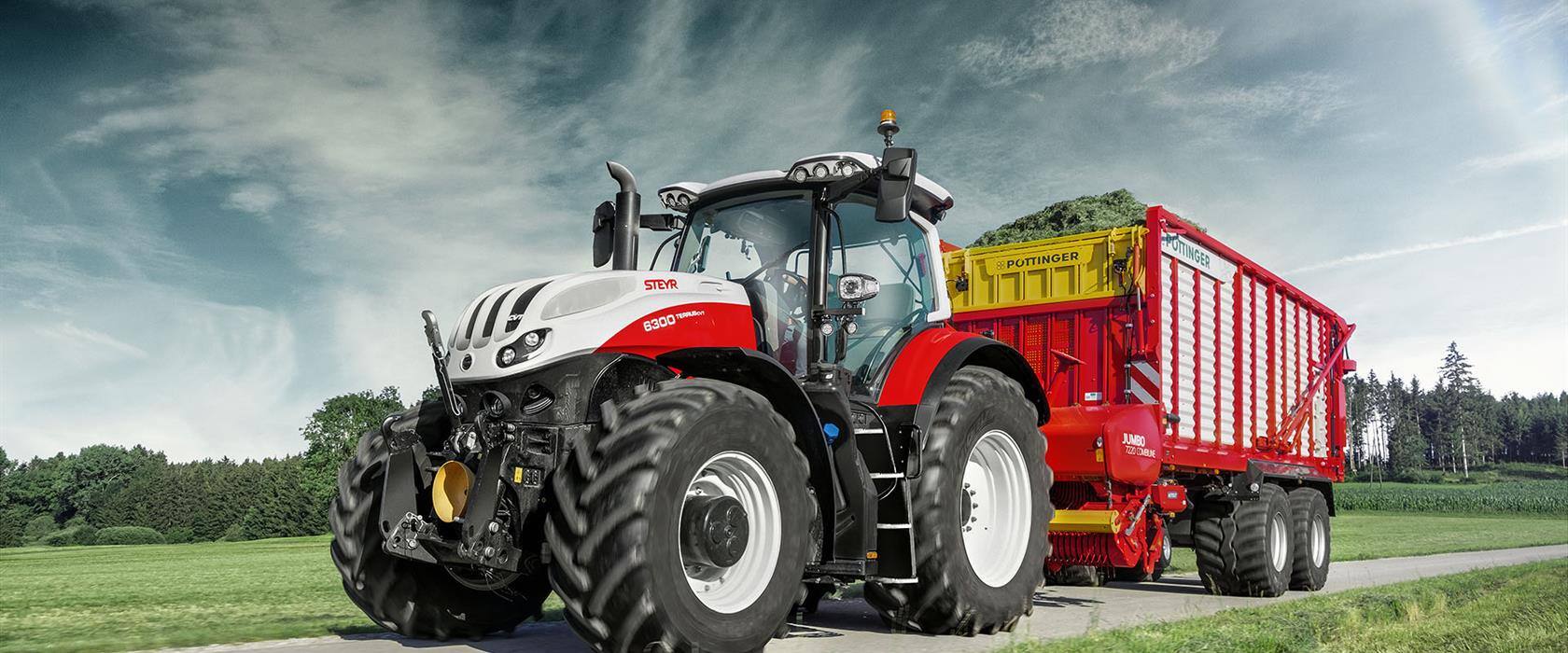

 Terrus CVT: The modern way of driving a Tractor. All models impress with their reactive steering system and high payloads, which extend up to 6,300kg. They are all fitted with wet dual disk brakes (4 disk brakes on the rear axle). In heavy-duty transport, these HD brake discs, being more resistant to wear, deliver a longer service life. With the patented advanced trailer brake system STEYR S-Brake you remain confident even in difficult situations.

PRECISION TECHNOLOGY TO KEEP YOUR BUSINESS AHEAD

ABSOLUTE PRECISION

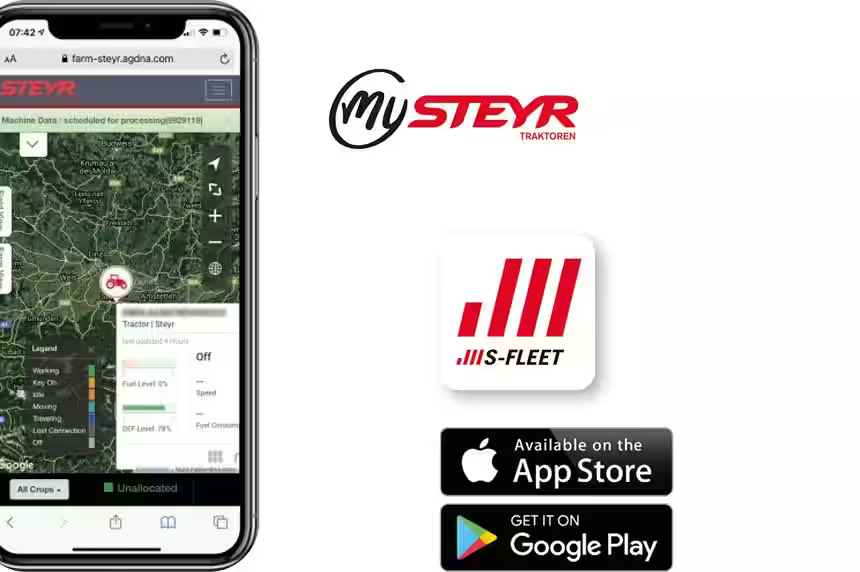

MySTEYR - KEEP AN EYE ON EVERYTHING
STEYR S-FLEET TELEMATICS SOLUTIONS
STEYR S-FLEET TELEMATICS
slide 2 of 4
STEYR Terrus CVT Brochure
6250 Terrus CVT 6270 Terrus CVT 6300 Terrus CVT
Number of cylinders 6 6 6
Engine
Type Common Rail Diesel engine with 24 valves, turbocharged and intercooled Common Rail Diesel engine with 24 valves, turbocharged and intercooled Common Rail Diesel engine with 24 valves, turbocharged and intercooled
Emission Level Stage V Stage V Stage V
Capacity (cm³) 6728 6728 6728
Engine Performance
Maximum engine power with Power Management (hp (kW)) - - -
Maximum engine power (hp (kW)) 273 (195) 288 (212) 313 (230)
@ engine speed (rpm) 1800 1800 1800
Rated engine power with Power Management (hp (kW)) - - -
Rated engine power (hp (kW)) 250 (184) 271 (199) 300 (221)
Rated engine speed (rpm) 2100 2100 2100
Maximum torque Power Management (Nm @ rpm) - - -
Maximum torque (Nm @ rpm) 1173 @ 1400 1194 @ 1400 1282 @ 1400
Torque rise Standard and Power Management (%) 40 / - 32 / - 28 / -
Fuel tank capacity diesel / urea (litres) 410 / 96 630 / 96 630 / 96
Standard Transmission
Transmission Type S-Control CVT - continuously variable transmission S-Control CVT - continuously variable transmission S-Control CVT - continuously variable transmission
Maximum Speed Forward (kp/h) 40 Eco / 50 Eco 40 Eco / 50 Eco 40 Eco / 50 Eco
Powershuttle Standard Standard Standard
Creeper integrated integrated integrated
Optional Transmission 1
Transmission Type - - -
Maximum Speed Forward (kp/h) - - -
Powershuttle - - -
Creeper - - -
Optional Transmission 2
Transmission Type - - -
Maximum Speed Forward (km/h) - - -
Powershuttle - - -
Creeper - - -
Power Take Off
PTO Type Electro-hydraulic with Auto PTO control available Electro-hydraulic with Auto PTO control available Electro-hydraulic with Auto PTO control available
Speed Standard @ rpm 540 / 540E / 1000 / 1000E @ 1930 / 1598 / 1853 / 1583 540 / 540E / 1000 / 1000E @ 1930 / 1598 / 1853 / 1583 540 / 540E / 1000 / 1000E @ 1930 / 1598 / 1853 / 1583
Speed Optional @ rpm - - -
Ground drive - - -
Shaft type
Front PTO and hitch
Speed Standard @ rpm 1000 / 1000E @ 1886 / 1585 1000 / 1000E @ 1886 / 1585 1000 / 1000E @ 1886 / 1585
Front hitch lift capacity (kg) 6016 6016 6016
Drive and Steering (Driveline)
2WD - - -
4WD Yes Yes Yes
Front axle suspension Standard Standard Standard
Steering angle (°) 55 55 55
Min.turning radius (m) 7.7 7.7 7.7
Rear axle diff-lock Multi disc wet plate with management system Multi disc wet plate with management system Multi disc wet plate with management system
Service Brake Type Hydraulically operated multiple wet disc brake, self adjusting Hydraulically operated multiple wet disc brake, self adjusting Hydraulically operated multiple wet disc brake, self adjusting
ABS Anti-lock braking system - - -
Hydraulic System
System Type Variable displacement, pressure flow compensated pump Variable displacement, pressure flow compensated pump Variable displacement, pressure flow compensated pump
Max. pump flow rate Standard / Option (litres) 165 / - 165 / 220 165 / 220
System pressure (bar) 215 215 215

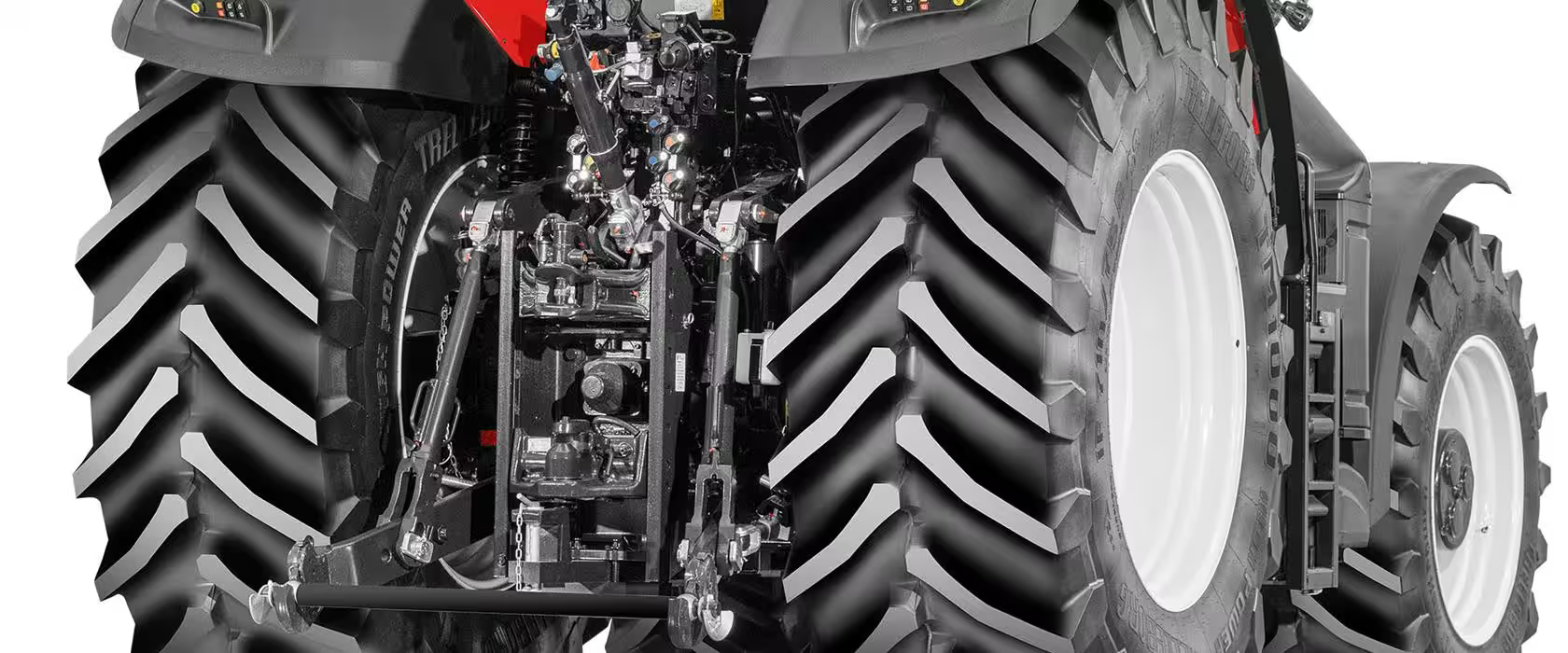

Control type Electronic Hitch Control (EHC) with hitch ride control Electronic Hitch Control (EHC) with hitch ride control Electronic Hitch Control (EHC) with hitch ride control
Max. lift capacity (kg) 11058 11058 11058
OECD lift capacity through range @ 610 mm (kg) 10305 10305 10305
Max. number of rear remotes valves 5 elec. 5 elec. 5 elec.
Max. number of mid mount valves 3 3 3
Remote valve timer control 0-60 seconds 0-60 seconds 0-60 seconds
Category type Cat. III N Cat. III / IV N Cat. III / IV N
Slip control Standard Standard Standard
